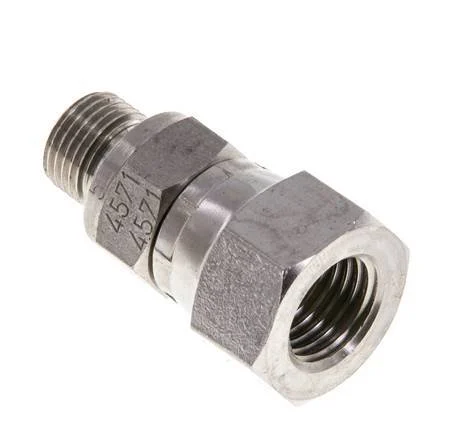

JIC Reducing Nipple UNF 7/16”-20 (Dash Size 4) Female x G1/8” Male Adjustable Stainless Steel 310bar (4355.5psi)

This is an adjustable JIC reducing nipple with G and UNF threads. Stainless steel 316 (1.4571) fittings have excellent corrosion resistance (better than stainless steel 304). The seal material is soft seal. The maximum operating pressure is 310 bar (4355.5 psi).

Specifications

Thread : UNF 7/16-20
Thread (smaller) : 1/8 inch
Dash Size : 4
Connection type : Inner thread flare (UNF),Outer thread cylindrical BSPP-G
Material : Stainless steel
Seal material : Soft seal
Max pressure at 20 °C (bar) : 310
Fitting features : Adjustable,Reducing
Quality of material : Stainless steel (1.4571)
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Material quality connection 2 : Stainless steel (1.4571)
Shape : Straight
