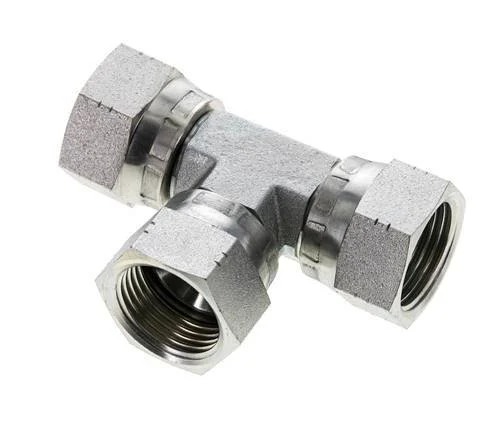

JIC Tee Fitting UN 1-1/16”-12 (Dash Size 12) Female Steel 210bar (2950.5psi)

This is a JIC tee fitting. Zinc-coated steel fittings provide some corrosion resistance, but are not meant for corrosive environments. The maximum operating pressure is 210 bar (2950.5 psi).

Specifications

Dash Size : 12
Thread : UN 1-1/16-12
Connection type : Inner thread flare (UNF)
Material : Steel
Max pressure at 20 °C (bar) : 210
Model : T-piece
Material connection 1 : Steel
Material connection 2 : Steel
Material connection 3 : Steel
Surface protection connection 1 : Galvanic zink plated
Surface protection connection 2 : Galvanic zink plated
Surface protection connection 3 : Galvanic zink plated
