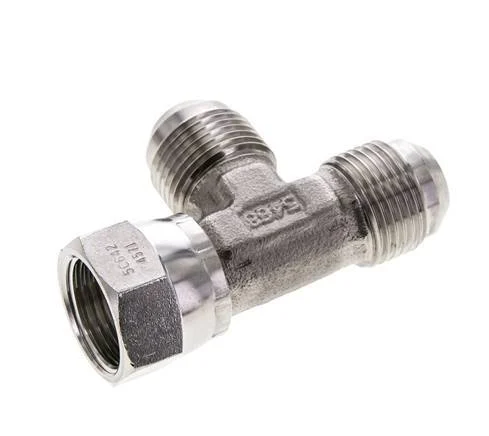

JIC Tee Fitting UN 1-1/16”-12 (Dash Size 12) Female x Male Stainless steel 350bar (4917.5psi)

This is a JIC right-angle tee fitting. Stainless steel 316 (1.4571) fittings have excellent corrosion resistance (better than stainless steel 304). The maximum operating pressure is 350 bar (4917.5 psi).

Specifications

Dash Size : 12
Thread : UN 1-1/16-12
Connection type : Inner thread flare (UNF),Outer thread flare (UNF)
Material : Stainless steel
Max pressure at 20 °C (bar) : 350
Model : L-shape
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material connection 3 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Material quality connection 2 : Stainless steel (1.4571)
Material quality connection 3 : Stainless steel (1.4571)
