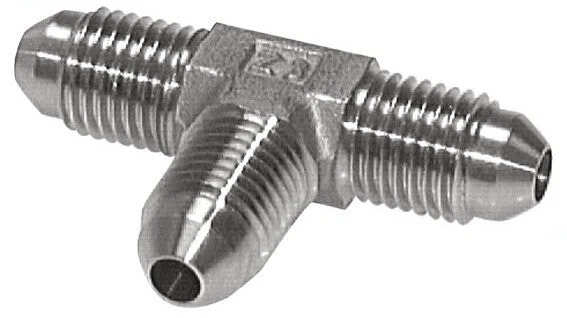

JIC Tee Fitting UN 1-1/16”-12 (Dash Size 12) Male Stainless steel 210bar (2950.5psi)

This is a JIC tee fitting. Stainless steel 316 (1.4571) fittings have excellent corrosion resistance (better than stainless steel 304). The maximum operating pressure is 210 bar (2950.5 psi).

Specifications

Dash Size : 12
Thread : UN 1-1/16-12
Connection type : Outer thread flare (UNF)
Material : Stainless steel
Max pressure at 20 °C (bar) : 210
Model : T-piece
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material connection 3 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Material quality connection 2 : Stainless steel (1.4571)
Material quality connection 3 : Stainless steel (1.4571)
