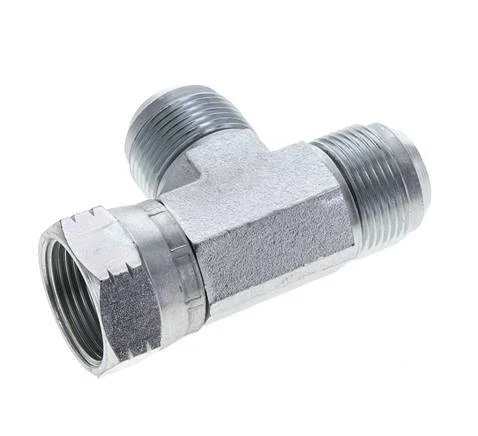

JIC Tee Fitting UN 1-5/16”-12 (Dash Size 16) Female x Male Steel 250bar (3512.5psi)

This is a JIC right-angle tee fitting. Zinc-coated steel fittings provide some corrosion resistance, but are not meant for corrosive environments. The maximum operating pressure is 250 bar (3512.5 psi).

Specifications

Dash Size : 16
Thread : UN 1-5/16-12
Connection type : Inner thread flare (UNF),Outer thread flare (UNF)
Material : Steel
Max pressure at 20 °C (bar) : 250
Model : L-shape
Material connection 1 : Steel
Material connection 2 : Steel
Material connection 3 : Steel
Surface protection connection 1 : Galvanic zink plated
Surface protection connection 2 : Galvanic zink plated
Surface protection connection 3 : Galvanic zink plated
