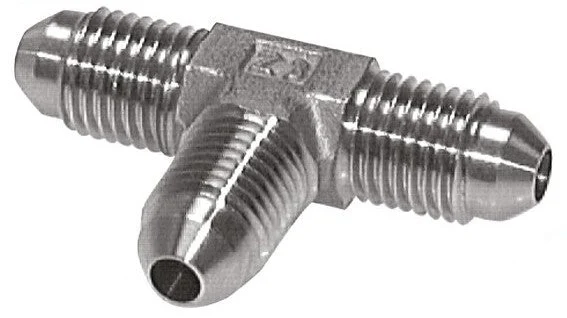

JIC Tee Fitting UN 1-5/16”-12 (Dash Size 16) Male Stainless steel 170bar (2388.5psi)

This is a JIC tee fitting. Stainless steel 316 (1.4571) fittings have excellent corrosion resistance (better than stainless steel 304). The maximum operating pressure is 170 bar (2388.5 psi).

Specifications

Dash Size : 16
Thread : UN 1-5/16-12
Connection type : Outer thread flare (UNF)
Material : Stainless steel
Max pressure at 20 °C (bar) : 170
Model : T-piece
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material connection 3 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Material quality connection 2 : Stainless steel (1.4571)
Material quality connection 3 : Stainless steel (1.4571)
