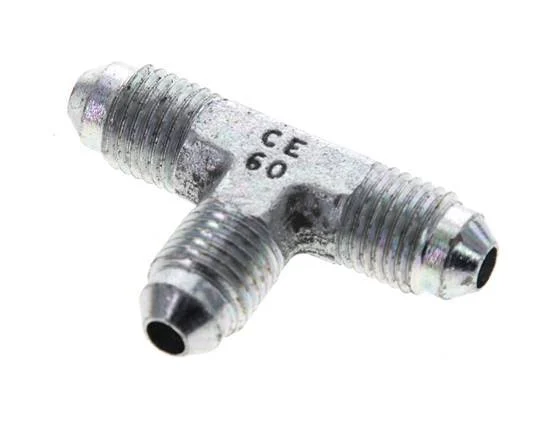

JIC Tee Fitting UNF 7/16”-20 (Dash Size 4) Male Steel 310bar (4355.5psi)

This is a JIC tee fitting. Zinc-coated steel fittings provide some corrosion resistance, but are not meant for corrosive environments. The maximum operating pressure is 310 bar (4355.5 psi).

Specifications

Dash Size : 4
Thread : UNF 7/16-20
Connection type : Outer thread flare (UNF)
Material : Steel
Max pressure at 20 °C (bar) : 310
Model : T-piece
Material connection 1 : Steel
Material connection 2 : Steel
Material connection 3 : Steel
Surface protection connection 1 : Galvanic zink plated
Surface protection connection 2 : Galvanic zink plated
Surface protection connection 3 : Galvanic zink plated
