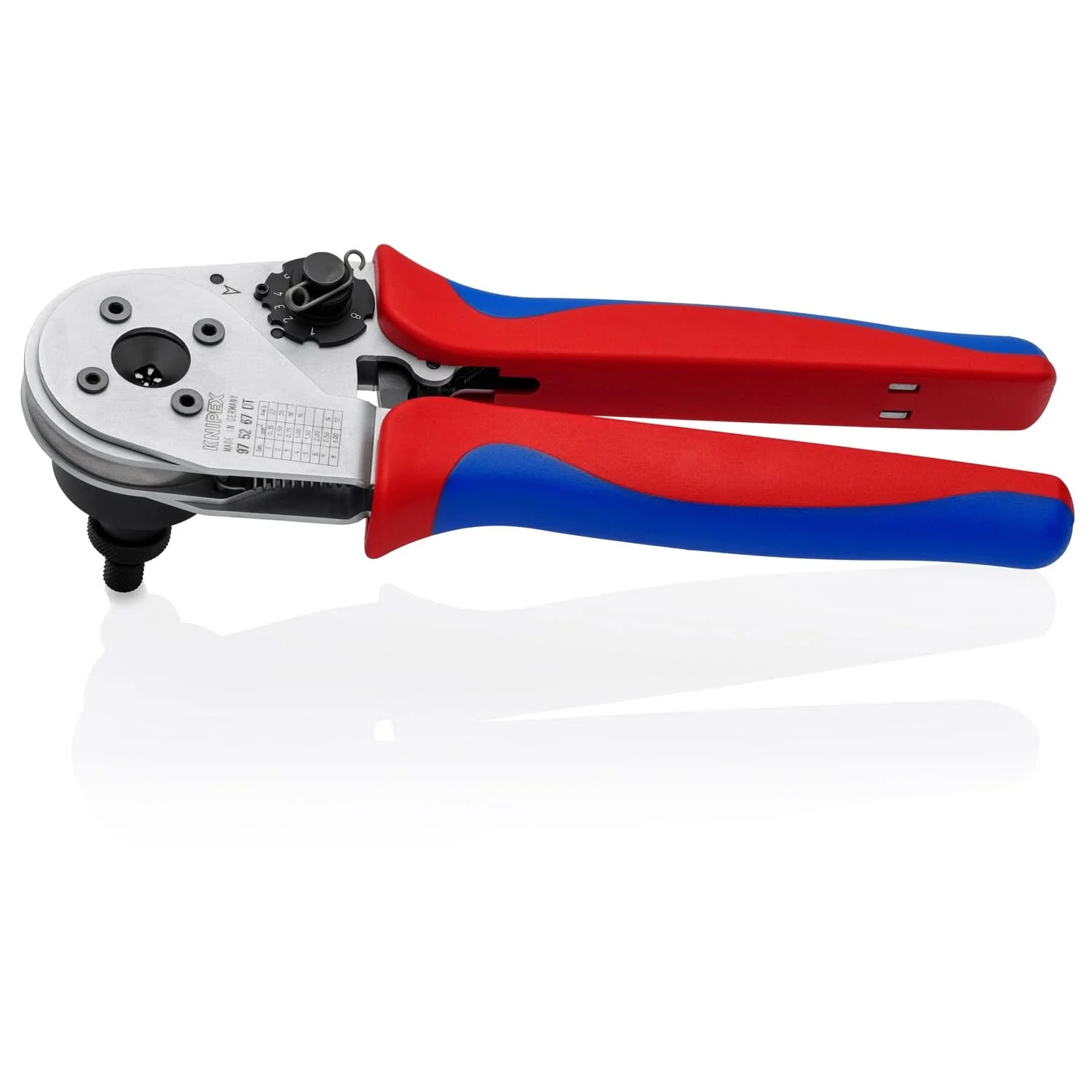

Knipex 97 52 67 DT Crimping Pliers – Four-Mandrel For DT Contacts

SKU: 97 52 67 DT Category: Pliers Tag: Knipex

Crimps all turned male and female contacts of the DT, DTM and DTP series (DEUTSCH series)
Crimping capacity from 22-12 AWG (0.35 mm-3.0 mm)
Synchronous feed of the four mandrels achieves optimum crimping results with eight indentations (4/8-Indent)
Position settings for the crimp depth can be clearly read on the pliers
Crimp depth selector wheel with eight locking positions for the perfect crimp
Universal positioning locator for flexible adjustment to all contact lengths
Repetitive, high crimping quality due to ratchet mechanism (unlockable)
Low manual force required due to lever transmission
Comfortable multi-component grips
Go/No-Go gauges allow quick quality calibration control at any time. Go gauge must fit, No-Go gauge must not fit. Gauges (97 59 67 1 and 97 59 67 2) are sold separately
