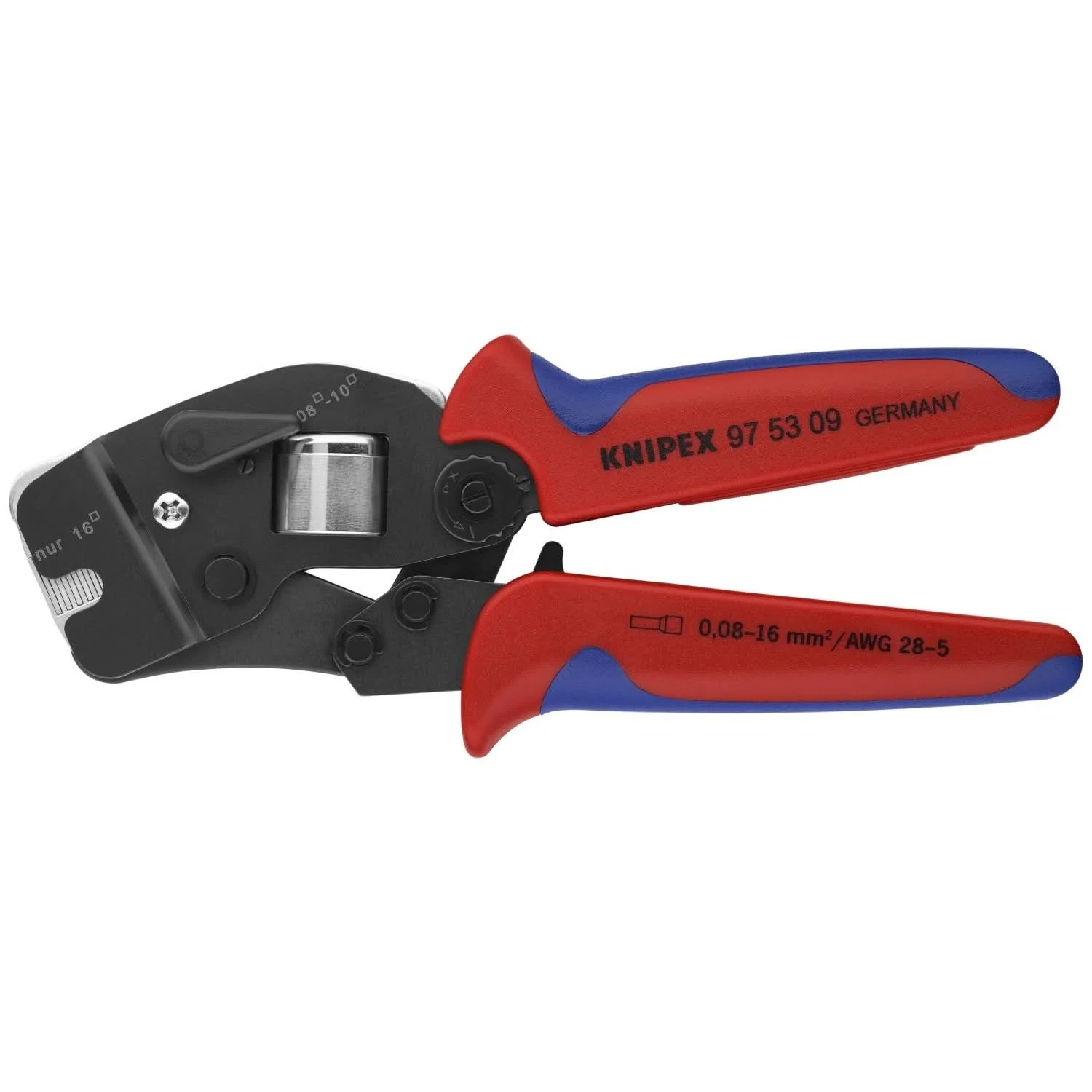

Name: Knipex 97 53 09 Self-Adjusting Crimping Pliers For Wire Ferrules
SKU: 97 53 09
Availability: InStock

Self-adjusting crimping pliers for end sleeves (ferrules) with front loading
For crimping ferrules (end sleeves) according to DIN 46228 parts 1 + 4
Crimping from 28 to 8 and 6 AWG (0.08 – 10.0 and 16.0 mm) in one profile; with selector lever for setting the crimping area either to 28 – 8 and 6 AWG (0.08 – 10 mm or 16 mm); particularly suitable for all twin ferrules (end sleeves) up to 2 x 6 mm or 2 x AWG 8
Self-adjusting adaptation to the desired wire end sleeve ferrule size: no crimping faults caused by using the wrong die
Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
Crimping pressure has been set precisely (calibrated) in the factory
Optimum transmission of force due to toggle lever for fatigue-reduced operation
High operation comfort thanks to handy shape and low weight
Chrome vanadium electric steel in special quality, oil-hardened
With selector lever for setting the crimping area either to 7 to 28 or 5 AWG (0.08 – 10 mm or 16 mm)
Suitable in particular for all twin end sleeves (ferrules) up to 2 x 6 mm or 2 x AWG 8
Pliers burnished
Handles with multi-component covers
