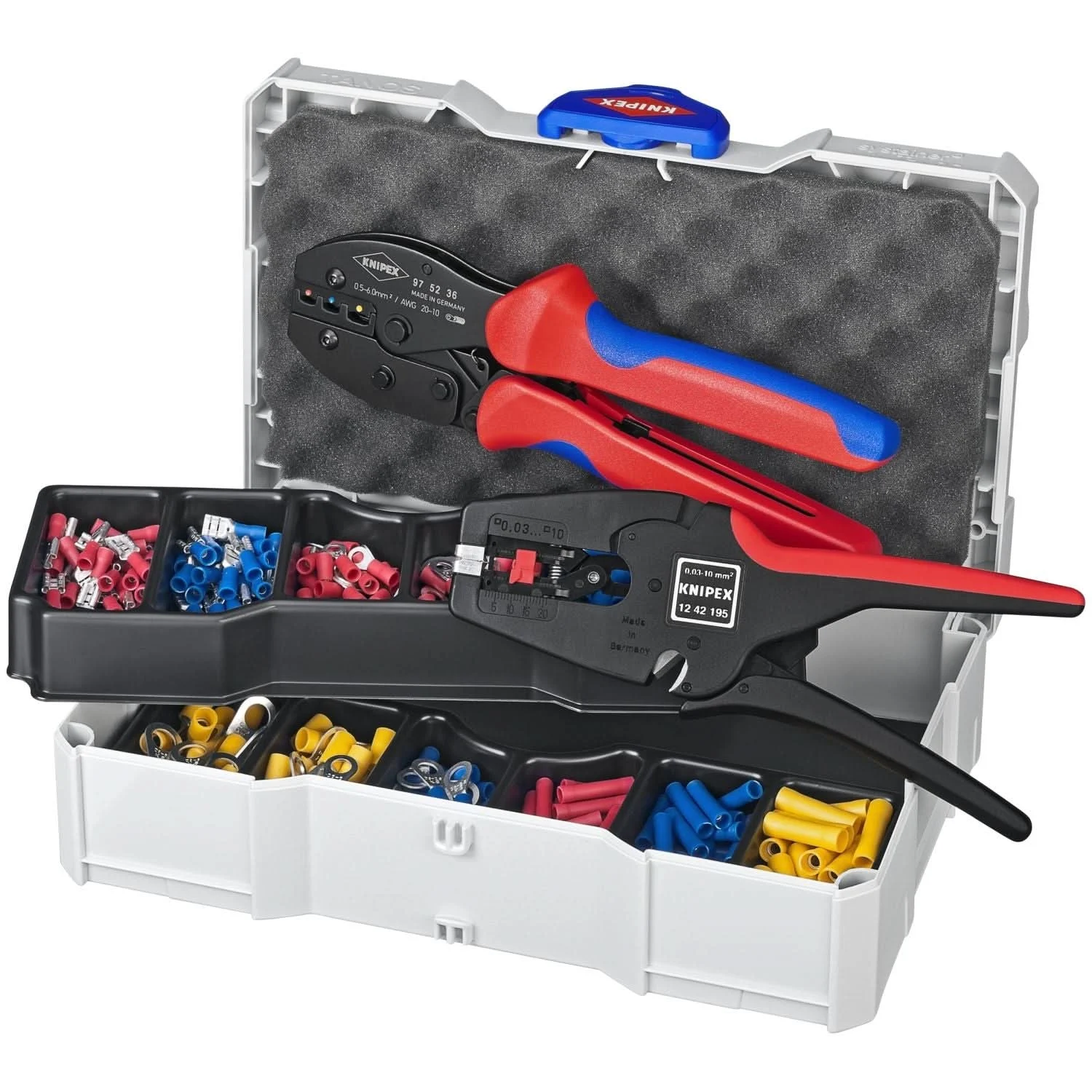

Name: Knipex 97 90 22 Crimp Assortments with 12 42 195 and 97 52 36
SKU: 97 90 22
Availability: InStock

KNIPEX crimping pliers with crimp assortments are versatile and efficient tools for various crimping tasks. With a range of interchangeable crimping dies, the crimping pliers allow for precise and various crimps on different connectors and terminals. Whether working with insulated or non-insulated crimps, this crimping kit provides quality results
Includes 97 52 36 (8 1/2″ Crimping Pliers For Insulated Terminals, Plug Connectors and Butt Connectors) and 12 42 195 (7 3/4″ Automatic Wire Stripper 8-32 AWG) with assortment of the most common sizes of end sleeves
6.3 x 0.8 mm blade terminal sockets (0.5 to 1 mm and 1.5 to 2.5 mm) – 25 each
4mm (0.5 to 1 mm) ring terminal – 25 each
5mm (0.5 to 1mm) ring terminal – 25 each
4mm (1.5 to 2.5mm) ring terminal – 25 each
5mm (1.5 to 2.5mm) ring terminal – 25 each
6mm (1.5 to 2.5mm) ring terminal – 25 each
6mm (4 to 6 mm) ring terminal – 25 each
8mm (4 to 6 mm) ring terminal – 25 each
Red (0.5 to 1mm) insulated butt connector – 25 each
Blue (1.5 to 2.5mm) insulated butt connector – 25 each
Yellow (4 to 6mm) insulated butt connector – 25 each
In a TANOS MINI-systainer (solid plastic box) includes two stackable plastic inserts with 6 trays each for connectors
T-Loc fastener for one-handed operation: open or close the systainer with one turn and connect to a second systainer
