Key Features
Made for guided cutting The Kreg ACS1000 Adaptive Cutting System Project Table Kit turns your guide rail into a stable cutting station for repeatable rips, crosscuts, miters, and bevels. Flat, stiff top MDF tabletop with an aluminum frame stays stable so your rail and stops stay aligned, which is what keeps cuts straight when you are breaking down sheet goods. Folds and rolls Heavy-gauge steel base folds for storage, stands upright when folded, and uses wheels and folding handles to move the table without wrestling it.
Overview

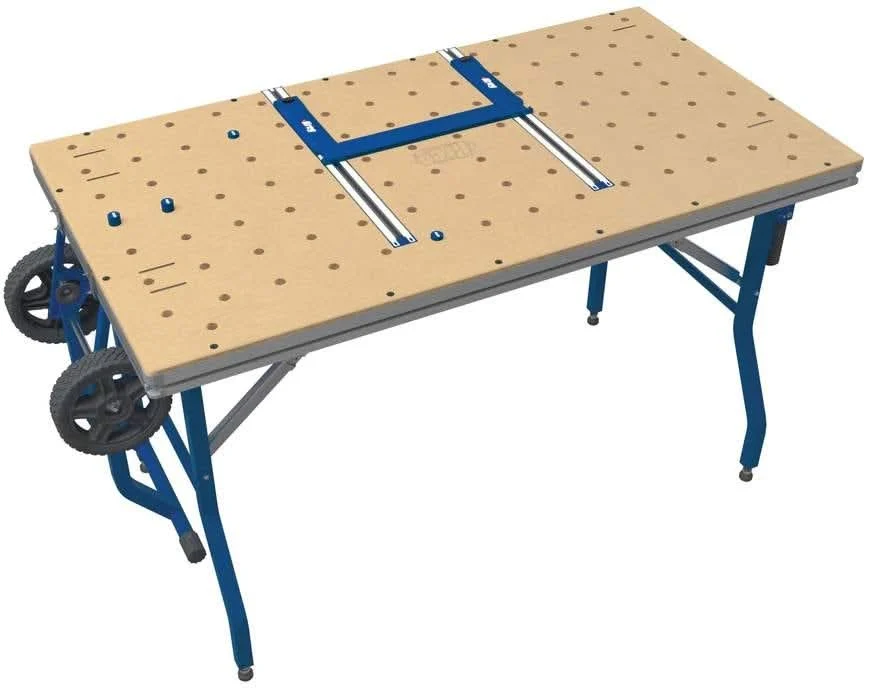

Kreg ACS1000 Adaptive Cutting System Project Table Kit (Model ACS1000-KIT) is a folding project table kit built to mount a guide rail for accurate, repeatable panel and board cutting. This is a project table kit designed for guided cutting with a track saw style guide rail.
The whole point of this table is control: instead of balancing plywood on sawhorses or fighting a panel on the floor, you set the material on the table, mount the rail to the brackets, and let the rail do the straight-line work. With the rail mounted, you can crosscut and rip solid wood boards, cut mitered angles, bevel edges, and break down large sheet goods to size with more consistency than freehand cuts.
The tabletop is sized at 55 in long x 29-3/4 in wide x 2-1/4 in high and is built from flat MDF with an aluminum frame for added stiffness. Kreg uses precision-machined 3/4 in diameter holes to align the workpiece stops with the guide rail, which is what makes repeat 90 degree and 45 degree cuts realistic without constantly re-measuring and re-squaring.
The base is where this kit earns its keep on real jobs. It is made from heavy-gauge steel and uses positive locking supports to keep the legs open during use, plus catches that hold everything against the underside of the table for storage or transport. When folded, the base and table stand upright for compact storage.
For moving it around, the base includes large rubber wheels and folding handles. It also has adjustable leg levelers so you can steady the table and set it at multiple heights, especially helpful when you are working on uneven concrete.
Bottom line: if you are already running a track saw setup (or planning to), this kit is for the woodworker, remodeler, or jobsite carpenter who wants a dedicated cutting station that stores small but still supports big panels.
Set Up a True Cutting Station
Mounting the guide rail to the table gives you a repeatable reference for straight cuts and clean sizing work, especially when you are breaking down panels by yourself.
- Designed to mount the guide rail to the table for crosscuts and rip cuts
- Built-in guides, stops, and measuring systems help position material consistently
Accurate 90 Degree and 45 Degree Cuts
The table uses a hole grid and aligned stops so you can set up once and cut parts that match, which is what matters when you are building cabinets, shelving, or anything with multiples.
- Precision-machined 3/4 in diameter holes help align stops to the track
- Made to support exact 90 degree and 45 degree setups
Folds for Storage, Rolls for Transport
This is the practical part: you get a solid cutting surface that does not live permanently in the middle of your shop. Fold it up, stand it vertically, and roll it where it needs to be.
- Heavy-gauge steel base with positive locking supports
- Large rubber wheels and folding handles for easier transport
What’s in the Box
- (1) Kreg Plunge Cut Saw Project Table (Top + Base)
Key Specifications
| Table Top Size (L x W x H) | 55 in x 29-3/4 in x 2-1/4 in |
|---|---|
| Table Top Material | MDF with aluminum frame |
| Hole Diameter | 3/4 in |
| Weight | 92 lb |
Compatibility
Guide Rail Fit Tested with Festool, Makita, and Triton guide rails that use a T-slot on the bottom of the rail for mounting. Minimum Guide Rail Length 62 in minimum for mounting on the long side of the table, or 32 in minimum for the short side.
Built For
Woodworking Cabinetry and built-ins Breaking down sheet goods Repeat crosscuts and rip cuts Remodeling Small-shop cutting station
Pro Tip
If you plan to mount your rail on the long side, make sure you are using at least a 62 inch guide rail so it fully seats in the table brackets and stays supported end-to-end.
Tool Nut’s Take
Tool Nut’s Take
Kreg ACS1000 Adaptive Cutting System Project Table Kit: the “finally, a home for my guide rail” setup
If you like track saw accuracy but hate improvising work support, this table kit fixes that problem in one shot.
- Who it’s for: Anyone doing cabinet parts, shelving, and panel breakdown who wants repeatable cuts without setting up sawhorses every time.
- Why it stands out: Stiff MDF and aluminum top, folding steel base, and a layout built around stops and measurement for repeat work.
- Worth knowing: Rail mounting needs the right length guide rail (62 inch long-side minimum) and some assembly is required.
Common Questions
- Will this work with non-Kreg guide rails? It has been tested with Festool, Makita, and Triton guide rails that mount using the T-slot on the bottom of the rail.
- What guide rail length do I need? Use a minimum 62 inch rail for mounting on the long side of the table, or a minimum 32 inch rail for the short side.
- Does it fold for storage? Yes. The base folds and the base and table can stand upright when folded for compact storage.
