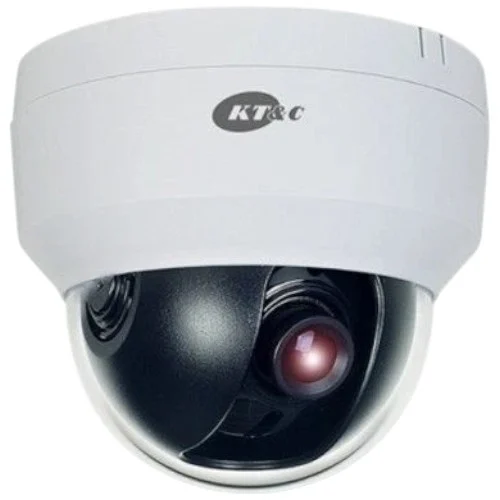

KT&C, KPC-Di36NW, Analog Dome Camera, 1/3″ 960H SONY EXview HAD CCD II, 3.6mm Board Lens 750TVL 0.1 Lux, 2DDNR / AGC / DWDR (ATR) / Digital D&N, DC12V
Features:
- Resolution of over 750 horizontal TV lines for astounding image quality
- 960H High Sensitivity sensor delivers excellent low light sensitivity of .1 lux
- Automatic day/night: switches from color to B/W images at low levels of ambient light
- Anti-Color-roll function maintains color balance independent of fluorescent or other types of illumination
- Digital Wide Dynamic Range delivers properly exposed images despite unbalanced scene lighting
- 2D-Noise Reduction improves picture clarity and DVR disk storage utilization
- Fixed focal length 3.6mm fixed lens covers a 67° field of view
- Indoor 3-Axis plastic housing allows wide range of mounting flexibility
- Integral liner to inhibit observation of camera direction
- Low current draw of only 90mA at 12VDC (regulated supply required)
For more information, please see Data Sheet
Technical Details
| Imaging Device | 1/3″ 960H High Sensitivity CCD |
| Video Format | NTSC |
| Picture Elements | NTSC: 1020(H)x508(V) |
| Effective Picture Elements | NTSC: 976(H) x 494(V) |
| Horizontal Resolution | More than 750 TVL from production cameras |
| Sensitivity | 0.1 lux / F2.0 |
| S/N Ratio | Over 50dB (AGC off) |
| Video Output | BNC 1.0V p-p 75Ω |
| Gamma Correction | 0.45 |
| Lens Type | 3.6mm fixed focal length; 67° wide Field of View |
| Automatic Gain Control | AUTO |
| Electronic Shutter | 1/60 ~1/100,000 sec. |
| Sync. Mode | Internal |
| Day & Night | Auto Digital Day/Night |
| White Balance | Anti Color-roll (prevents color roll with fluorescent illumination) |
| Digital Wide Dynamic Range | On (Luminance and Contrast = High) |
| Digital Noise Reduction | 2D-DNR On; level = medium |
| Power Source | 12VDC regulated supply required (+/- 10%; no ripple) |
| Power Consumption | 90mA max |
| Operating Temperature | 5°F~140°F ; -15°C~60°C |
| Storage Temperature | -4°F ~ 140°F ; -20°C ~ 60°C |
| Humidity | Less than 80% non condensing |
| Dimensions | 3.15″ (80mm) diameter; 2.76″ (70mm) high |
| Weight | 4.23 oz./ 0.26 lb / 120g |
| Certifications | CE / FCC / RoHS |
