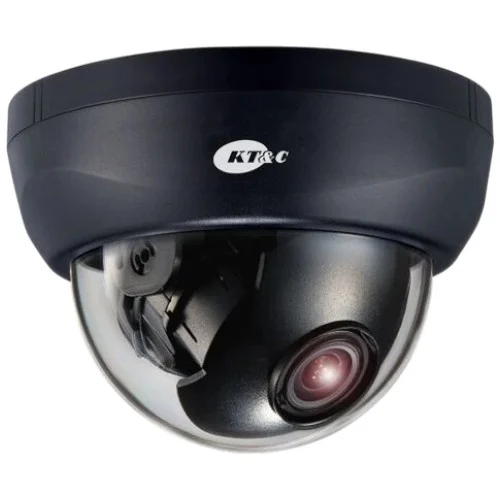

KT&C, KPC-DNS102NUV, Analog Dome Camera, 1/3″ 960H SONY EXview HAD CCD II, 2.8-12mm VF Lens 750TVL 0.01 Lux, 2DDNR / BLC / AWB / AGC / DWDR / Mirror / OSD / AC24/DC12
Features:
- Superlative resolution of over 750 horizontal TV lines for amazing image quality
- 960H CCD with sensor sensitivity of .01 lux in low light without DSS boost
- Full motion color or digital day/night during low ambient light without ghosting
- Simple and easy to use OSD setup menu
- Digital Wide Dynamic Range for proper contrast in challenging bright or unbalanced scenelighting conditions
- Anti Color Roll for proper white balance independent of fluorescent or other types ofillumination
- Adjustable 2D-Noise Reduction to increase low-light picture clarity andconserve DVR HDD disk space
- Privacy masking for 8 configurable zones
- Lens shading compensation for even exposure out to the lens periphery
- 2.8~12mm 2 Megapixel Aspheric Varifocal DC iris lens to capture the desired field of view
- Dual voltage (12VDC/24VAC) with Anti Color Roll
- Service Video output for convenient installation and ease of service
- 3-Axis gimbal for convenient wall or ceiling mounting
For more information, please see Data Sheet
Technical Details
| Imaging Device | 1/3″ 960H High Sensitivity CCD |
| Video Format | NTSC |
| Picture Elements | NTSC: 1020(H)x508(V) |
| Effective Picture Elements | NTSC: 976(H) x 494(V) |
| Horizontal Resolution | More than 750 TVL |
| Sensitivity | .01 lux native from sensor – no ghosting With lens: .1 lux |
| S/N Ratio | Over 50dB (AGC off) |
| Video Output | BNC 1.0V p-p 75Ω; video test point inside dome, cable supplied |
| Gamma Correction | 0.45 |
| Lens Type | 2 Megapixel Aspheric Varifocal DC Iris 2.8~12mm F=1.6 |
| Lens Positioning | 3-axis flexible positioning for wall or ceiling mounting |
| Back Light Compensation | OFF/BLC/HLC Selectable |
| Auto Gain Control | Off/Low/Middle/High |
| Electronic Shutter | Auto; or 1/60, FLK, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/5000, 1/10000, 1/100000 |
| White Balance | ATW/AWB/AWC->SET/Anti-Color Roll/Manual |
| Sync. Mode | Internal (plus Anti Color Roll White Balance option above) |
| Day & Night | Digital D/N control; Choose Auto, Color or B/W |
| OSD Menu | Multiple functions using 3-axis joystick |
| OSD Languages | English, Spanish, Portuguese, German, Russian, Japanese, Chinese, French |
| 2D-DNR | On/Off (level adjustable) |
| Digital Wide Dynamic Range | On/Off (Level Adjustable) |
| Mirror | Off/On |
| Motion Detection | Off/On for 4 selectable zones (On-screen indication) |
| Privacy Mask | Off/On for 8 selectable zones |
| Lens Shading Correction | Off/On with adjustable level and center |
| Other OSD Functions | Camera Title with position and Font Color; Image Contrast/Sharpness; CRT/LCD display optimization; Negative Image; DPC (Dead Pixel Compensation) |
| Power Source | 12VDC/24VAC automatic |
| Power Consumption | 12VDC:160mA max. / 24VAC:1.8W max. |
| Operating Temperature | 5°F~140°F ; -15°C~60°C |
| Environmental | Indoor; up to 80%RH (non-condensing) |
| Mechanical | Three-axis, twist-open dome; choice of black body (no suffix) and white body (W suffix) |
| Dimensions | 5.31″ (135mm) diameter, 3.82″ (97mm) high |
| Weight | .76 lbs. / 343 grams |
| Certifications | CE / FCC RoHS |
