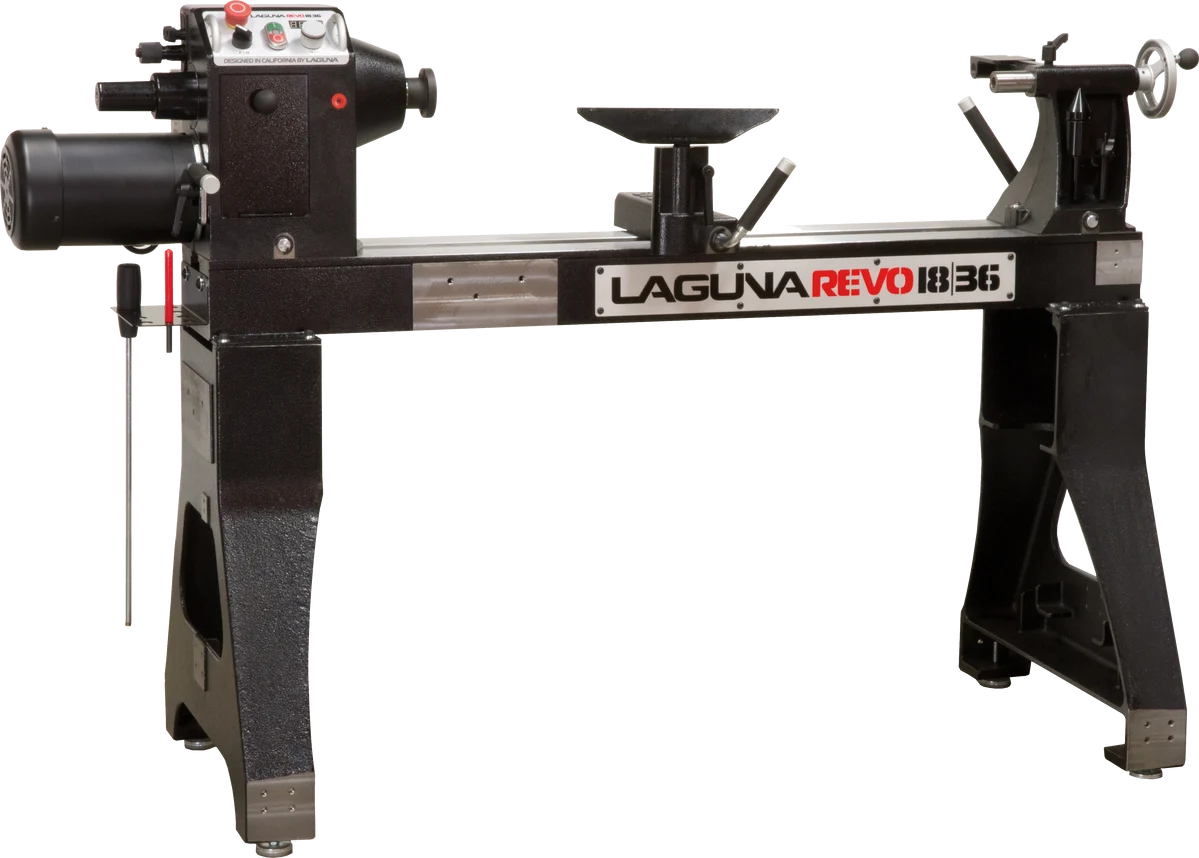

The first feature that will catch your attention is undoubtedly the ergonomic angled control panel made from anodized aluminum. The blue hue of the DRO along with the beautiful knurled control knob fitted with a rubber grip signals this is no ordinary lathe. The bed is made from steel, allowing the cast iron headstock to travel incredibly smoothly. Steel is the preferred material due to its well known longevity & strength. Electronic variable speed is obtained via a VFD that converts 1 phase input to 3 phase output, so even at low settings you will get an incredible amount of torque. The DRO gives you an accurate RPM readout whenever any fine adjustments are made electronically. Changing from high to low settings is made easy by using the quick release handle. The headstock & tailstock lock handles are situated on the back to eliminate any interruptions to your work flow. Ergonomically designed handles use a cam lock resulting in a firm feel with no deflection.
Owner’s Manual
FEATURES:
- Electrical: 1.5HP, 110 Volt, 60 hz
- Motor: Induction, 1725 RPM, TEFC
- VFD: Delta S1 Variable Frequency Drive
Phase: 1 Phase Input, 3 Phase Output
Poly-Groove Drive Belt With EZ Access
Recommended Breaker: 15 Amp
Spring Loaded Spindle Lock
Maximum Outboard Swing: 32″ (w/ Optional 20″ Extension Kit Installed)
Swing Over Banjo: 13-½″
Steel Bed: ASTM A36
Toolrest Post Size: 1″
Bed Gap: 50mm
Spindle Taper: MT#2
Swing Over Bed: 18″
RPM High: 135-3500
RPM Low: 50-1300
Tailstock Quill: #2 MT
Floor To Spindle Center: 41-½″ with Pads
