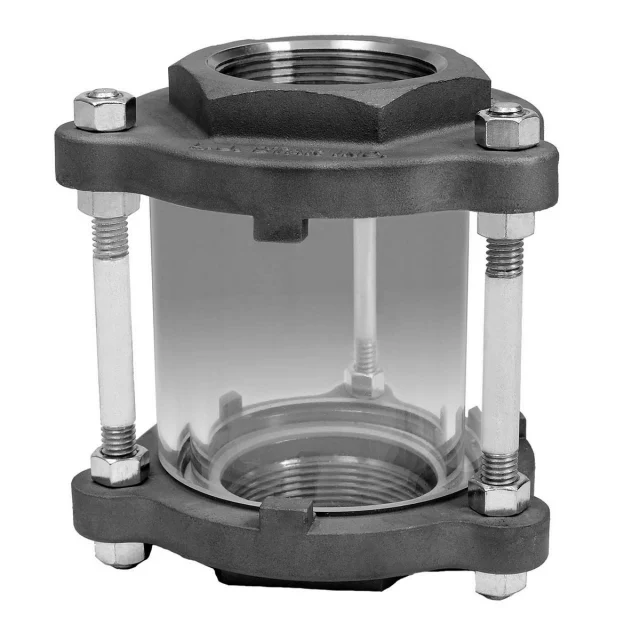

LJ Star, 116 CN1N1AN, 2″ Visual Flow Indicator, Full View Threaded Model, Carbon Steel
Features:
- Investment cast surface finish
- Acrylic enamel coating (carbon steel unit)
- Teflon® gaskets are Standard on stainless steel units
- Impact shield standard
- May be installed in any position to observe fluid flow in any direction.
- These style indicators are usually employed to detect either the presence or absence of solutions or to observe fluids for turbulence, color, or clarity.
Over two years of engineering and design have resulted in a industry standard for visual flow indicator technology. Uncompromising levels of quality, safety, and technological excellence are standard features in the complete line of L.J. Star Incorporated Full View Flanged Model visual flow indicators. Sight flow indicators provide a simple and failproof means of observing the presence or absence of flow within a process pipeline.
Technical Details
| Product Description | Full View Visual Flow Indicator |
| Connection Style & Indicator | Plain – Threaded |
| Pipe Size | 2″ |
| Head (End Cap) Material | Carbon Steel (ASTM A216 WCB) |
| Seal Gasket Material | Neoprene |
| Wetted Cylinder Option | Borosilicate |
| Lining Option | None |
| Bolting Option | Plated Steel [Grade 5] |
| Shield Option | Acrylic |
| Dimensions | |
| Dim A | 6-1/4″ |
| Dim B | 4-3/4″ |
| Dim C | 3″ |
| Weight | 6 lbs |
| Working Pressure | 150PSI |
