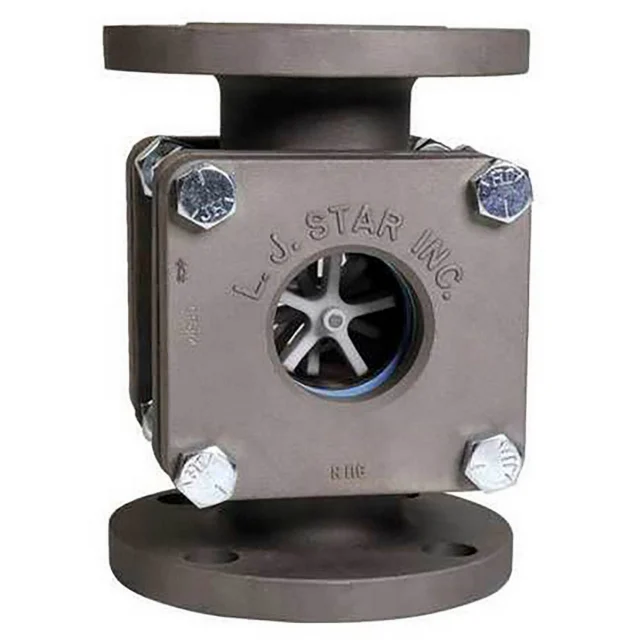

LJ Star, 1412 CNNN1N, 1-1/2″ Visual Flow Indicator, Standard Threaded Model with Rotator, Carbon Steel
Features:
- Full ANSI Class Rating
- Independently bolted glass retainers
- Tempered borosilicate glass
- Investment cast surface finish
- Acrylic enamel coating (carbon steel unit)
- Cast metal glass retainers
- Rotator style indicator may be installed in any position to indicate flow in any direction
- The visibility of rotor motion makes this style particularly well-suited for monitoring clear, translucent or dark solutions.
Extensive engineering and design have resulted in the highest industry standard for visual flow indicator technology. Uncompromising levels of quality, safety and technological excellence are standard features in the complete line of L.J. Star Incorporated Standard Threaded Model visual flow indicators.
Technical Details
| Class | 150PSI |
| Connection Style & Indicator | Rotor – Threaded |
| Pipe Size | 1-1/2″ |
| Head (End Cap) Material | Carbon Steel (ASTM A216 WCB) |
| Seal Gasket Material | Neoprene |
| MetaGlas Upgrade | None |
| Lining Option | None |
| Bolting Option | Plated Steel [Grade 5] |
| Shield Option | None |
| Dimensions | |
| Dim A | 5-1/2″ |
| Dim B | 1-3/4″ |
| Dim C | 5-2/8″ |
| Weight | 12 lbs |
