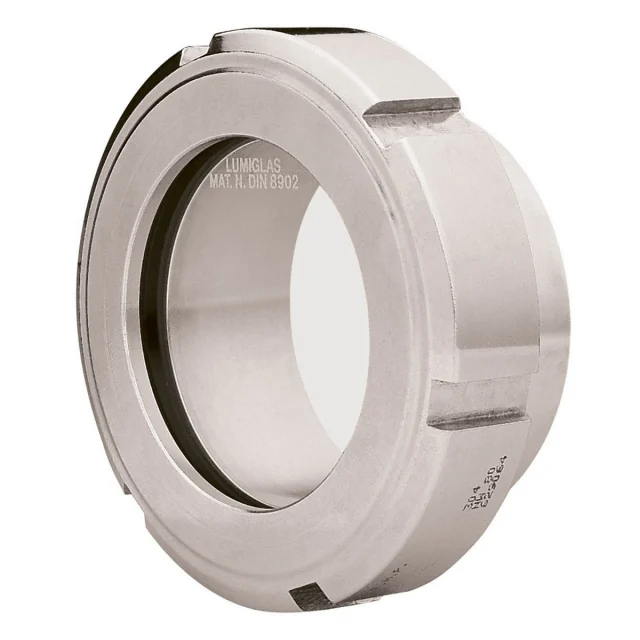

LJ Star MV-80-SA1A1NN MV Series 80 mm Weld Neck Sightglass Fitting

LJ Star MV-80-SA1A1NN MV Series 80 mm Weld Neck Sightglass Fitting

Original price was: $376.90.Current price is: $75.38.

Buy now
SKU: MV-80-SA1A1NN Category: Tag:

LJ Star, MV-80-SA1A1NN, MV Series 80 mm Weld Neck Sightglass Fitting with Silicone Seal

Features:

  • Sightglass fittings are specific to DIN 11851 (dairy standard fittings) with see-through circular glasses.
  • Threaded nozzles have weld necks.
  • Butt-weld sight glass fitting with a threaded cover nut

Applications:

  • Sightport for viewing process vessels, silos, mixers, separators, pipelines, and others usually closed containers.
  • Particularly suitable for pharmaceutics, food and beverage processing, e.g. breweries, dairies, etc.

This sight glass unit can be combined with the Lumiglas luminaires for use in non-hazardous areas. This sight glass offers easy cleaning and a clear field of visibility and can come equipped with an optional light source. Suitable for use in the chemical, pharmaceutical, and food industries.

Diagram for individual temperature rating depending on material selection:

Parts & materials:

  1. Threaded cover nut: Stainless steel type 304
  2. Cushion gasket: Non-Asbestos
  3. Sightglass disc: Soda lime glass, tempered for max temp 150°C
  4. D-ring seal: silicone (max. 250°C)
  5. Weld neck nozzle Stainless steel type: 316 L
  6. Vessel wall

Technical Details

Dimensions
  • d1: 3.15″ / 80 mm
  • d2: 94 mm
  • s: 12 mm
  • D: 127 mm / 5.00″
  • d: 93 mm / 3.66″
  • A: 57 mm / 2.24″
  • a: 25 mm
Nominal bore 80
Pressure PSIG 150
Approvals and Technical Data
  • Glass-like transparency with enhanced safety
  • Sterilizable with steam, gamma, and e-beam
  • Suitable for CIP & SIP cycles
  • High purity with low leachable. No changes in light transmission and mechanical strength after leachable tests
  • Up to 100°C normal operating conditions
  • ASME BPE Compliant
  • Grades for medical applications that pass US/EU/Japan Pharmacopeia, ISO 10993, DMF listed
  • Good chemical resistance to acids, alkalis (caustics), and alcohols
  • Not compatible with hydrocarbon oils, vegetable oils, and milkfat
  • No BPA, BPB or BPXs that contaminate process media
