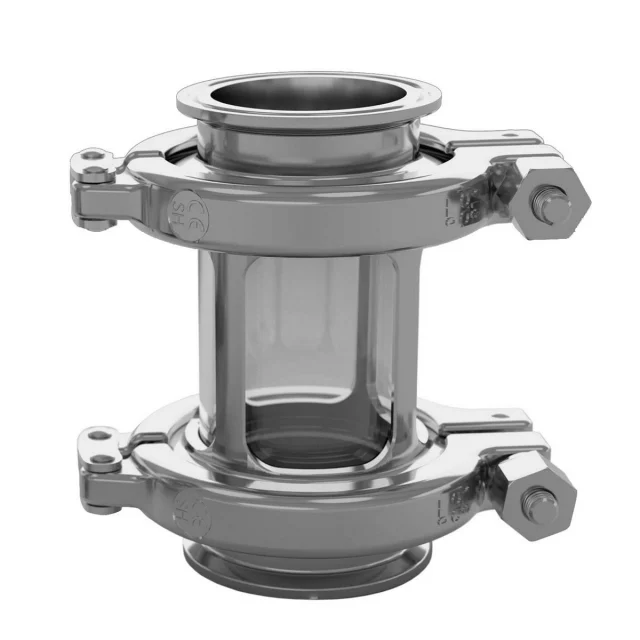

LJ Star, SVFCT-A25AA1B, Clamp Type 2-1/2″ Sterile Visual Flow Indicator with EPDM Seal
Features:
- Mechanical stop for controlled gasket compression
- Eliminates thread galling and loosening of unit
- Prevents torsional distortion of o-rings typical with threaded designs
- No tools for easy assembly and disassembly
- Up to 34% increased viewing
- Precision bore borosilicate glass
- The product contact surface of SF4 (15 Ra Max, EP)
- Armored housing protects the glass from objects and pipe stress.
- Units can be used during SIP/CIP and sterilizing/autoclaving.
Designed to be mounted in-line for high purity hygienic applications, these clamp type “CT” sterile-design visual flow indicators provide operators with a clear view of flow for virtually any process pipeline fluid or powder. They feature an internal-flush style based on a unique O-ring seal design that minimizes traps where bacteria can build up. Polished stainless steel sanitary clamp connections are standard with orbital weld, Swagelok TS, flange or union connections as special order items.
Constructions:
Technical Details
| Dimensions | |
|
|
| Tube OD | 2-1/2″ |
| No. of Windows | 6 |
| Integral Clamp Size | 3″ |
| Pressure PSI | 94 |
| Weight Lbs. | 4.2 |
| Approvals |
|
