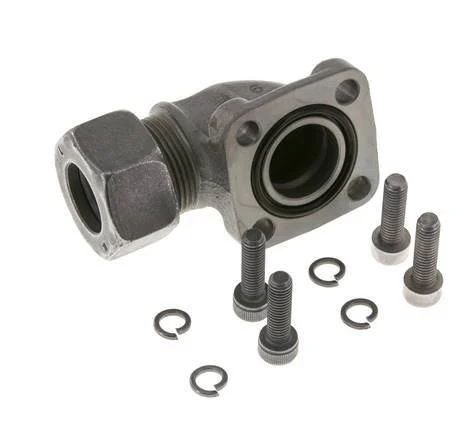

LK 40 Elbow Pump Flange Malleable cast iron with 18L (M26x1.5)

This is an elbow square pump flange with a cutting ring connection port. The flange connection point is an LK 40 flange size (square hole pattern). Connection 2 is a 18 mm cutting ring with an M26x1.5 union nut. The body is made of zinc plated malleable cast iron with an NBR seal. The maximum pressure is 100 bar (1450 psi) and the fitting is suitable for temperatures from -30 to 90 °C (-22 to 194 °F). The four M6x22 bolts are included.

Pros:

• Suitable for hydraulic applications

Specifications

Union nut thread : M26 x 1.5
Load class (DIN 2353) : L (light)
Pump flange : LK 40
Cutting ring connection (mm) : 18
Connection type : Cutting ring,Flange
Material : Malleable cast iron
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 100
Min temperature (°C) : -30
Max temperature (°C) : 90
Bend angle (°) : 90
Material connection 1 : Malleable cast iron
Material connection 2 : Malleable cast iron
Shape : Elbow
Surface protection connection 1 : Galvanic zink plated
Surface protection connection 2 : Galvanic zink plated
With drain : No
