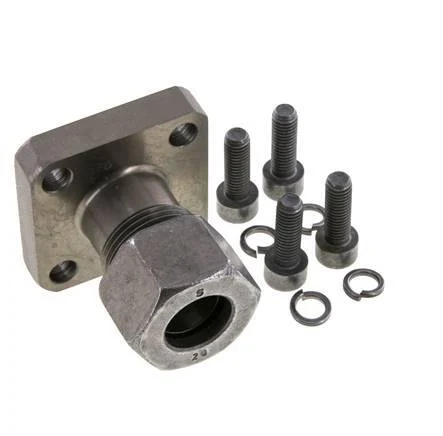

LK 55 Pump Flange Steel with 20S (M30x2)

This is a square pump flange with a cutting ring connection port. The flange connection point is an LK 55 flange size (square hole pattern). Connection 2 is a 20 mm cutting ring with an M30x2 union nut. The body is made of zinc plated steel with an NBR seal. The maximum pressure is 250 bar (3625 psi) and the fitting is suitable for temperatures from -30 to 90 °C (-22 to 194 °F). The four M8x25 bolts are included.

Pros:

• Suitable for hydraulic applications

Specifications

Union nut thread : M30 x 2
Load class (DIN 2353) : S (heavy)
Pump flange : LK 55
Cutting ring connection (mm) : 20
Connection type : Cutting ring,Flange
Material : Steel
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 250
Min temperature (°C) : -30
Max temperature (°C) : 90
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Straight
Surface protection connection 1 : Galvanic zink plated
Surface protection connection 2 : Galvanic zink plated
With drain : No
