M14x1.5 x G 1/4” Brass Double Nipple 16 Bar [2 Pieces]

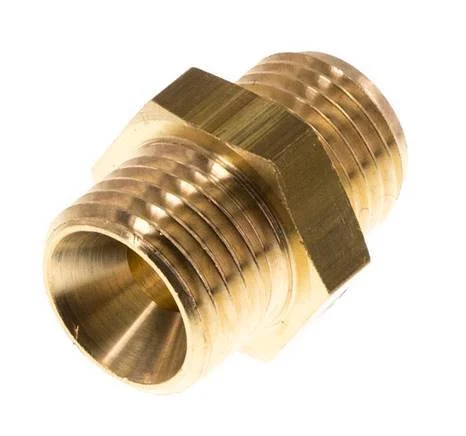

This double nipple is designed with male to male threads. Connection 1 has male M14 x 1.5 threads. Connection 2 has male G 1/4 inch threads. It is a straight fitting. It is made out of brass. At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi). It has a 17 mm nut to be tightened with a wrench.

FL2S-M series

The FL2S-M series are straight double nipples with two male connection points. Thread standards of NPT, R, G, and metric are available in a wide range. They have a 1-part design made out of brass, cast iron, steel, or stainless steel.

Specifications

Thread : M14 x 1.5
Thread (smaller) : 1/4 inch
Connection type : Outer thread metric,Outer thread cylindrical BSPP-G
Material : Brass
Max pressure at 20 °C (bar) : 16
Model : 1-part
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
Wrench width (mm) : 17
