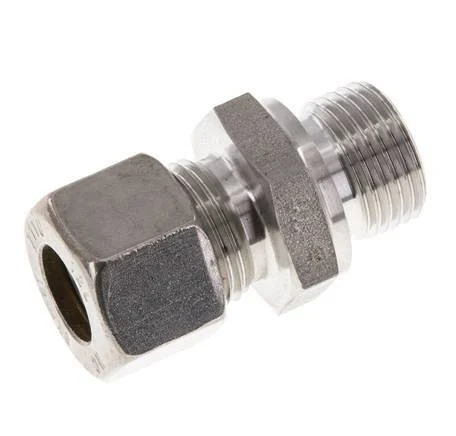

M18x1.5 Male x 12L Stainless steel Straight Compression Fitting 315 Bar DIN 2353

This straight screw in connection is designed with male threads and a compression ring fitting connection. Connection 2 is a 12 mm compression ring. It is a straight fitting. It is made out of stainless steel (1.4571). It is suitable for media within a temperature range of -60 °C to 400 °C (-76 °F to 752 °F). At 20 °C (68 °F), it can handle a maximum pressure of 315 bar (4569 psi). According to the DIN 2353, it has an L (light) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353). They have a 3-part design.

Cons:

• Since it has a compression ring connection, it can only be used once

FL2S-MC series

The FL2S-MC series are straight fittings with NPT, G, R, metric or metric canonical male threads to a either a compression ring or cutting ring connection point. 3-part design made out of brass, steel, or stainless steel.

Specifications

Thread : M18 x 1.5
Compression ring connection (mm) : 12
Load class (DIN 2353) : L (light)
Connection type : Outer thread metric
Material : Stainless steel
Min pressure (bar) : 0
Min pressure difference (bar) : 0
Max pressure at 20 °C (bar) : 315
Min temperature (°C) : -60
Max temperature (°C) : 400
Standard : DIN EN ISO 8434-1 (DIN 2353)
Quality of material : Stainless steel 321 (1.4541)
Model : 3-part
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel 321 (1.4541)
Material quality connection 2 : Stainless steel 321 (1.4541)
Shape : Straight
With drain : No
