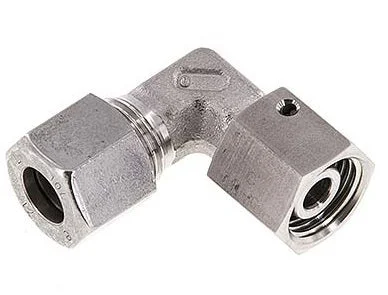

M22x1.5 x 14S Stainless steel Adjustable 90 deg Elbow Compression Fitting with Sealing cone and O-ring 630 Bar DIN 2353

This elbow screw connection is designed with a compression ring connection point and a union nut connection point. Connection 1 is a 22 mm union nut. Connection 2 is a 14 mm compression ring. It comes with a gasket to ensure a proper seal can be made. It is an elbow fitting. It is made out of stainless steel (1.4571). It has a FKM / PTFE seal. It is suitable for media within a temperature range of -20 °C to 200 °C (-4 °F to 392 °F). At 20 °C (68 °F), it can handle a maximum pressure of 630 bar (9138 psi). The input and the output are at a 90° angle. According to the DIN 2353, it has an S (heavy) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).

Cons:

• Since it has a compression ring connection, it can only be used once

FL2E-NC series

The FL2E-NC series are elbow fittings with a union nut and then either a compression ring or cutting ring connection point. They are at a 90 degree bend and made out of steel or stainless steel.

Specifications

Compression ring connection (mm) : 14
Union nut connection : M22 x 1.5
Load class (DIN 2353) : S (heavy)
Material : Stainless steel
Seal material : FKM (FPM)
Max pressure at 20 °C (bar) : 630
Min temperature (°C) : -20
Max temperature (°C) : 200
Standard : DIN EN ISO 8434-1 (DIN 2353)
Fitting features : With gasket
Type of sealing : O-ring
Quality of material : Stainless steel 321 (1.4541)
Model : 3-part
Bend angle (°) : 90
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel 321 (1.4541)
Material quality connection 2 : Stainless steel 321 (1.4541)
Shape : Elbow
With drain : No
