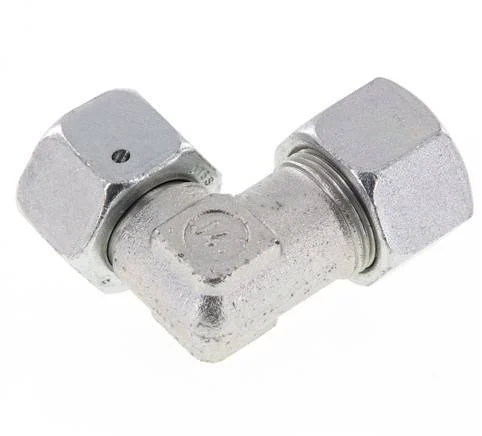

M24x1.5 x 16S Zinc plated Steel Adjustable 90 deg Elbow Fitting with Sealing cone and O-ring 400 Bar DIN 2353

This elbow screw connection is designed with a cutting ring connection point and a union nut connection point. Connection 1 is a 24 mm union nut. Connection 2 is a 16 mm cutting ring. It comes with a gasket to ensure a proper seal can be made. It is an elbow fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. It has a NBR seal. It is suitable for media within a temperature range of -35 °C to 100 °C (-31 °F to 212 °F). At 20 °C (68 °F), it can handle a maximum pressure of 400 bar (5802 psi). The input and the output are at a 90° angle. According to the DIN 2353, it has an S (heavy) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).

Cons:

• Since it has a cutting ring connection, it can only be used once

FL2E-NC series

The FL2E-NC series are elbow fittings with a union nut and then either a compression ring or cutting ring connection point. They are at a 90 degree bend and made out of steel or stainless steel.

Specifications

Union nut connection : M24 x 1.5
Load class (DIN 2353) : S (heavy)
Cutting ring connection (mm) : 16
Material : Steel
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 400
Min temperature (°C) : -35
Max temperature (°C) : 100
Standard : DIN EN ISO 8434-1 (DIN 2353)
Fitting features : With gasket
Type of sealing : O-ring
Model : 3-part
Bend angle (°) : 90
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Elbow
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
With drain : No
