Key Features
Faster ConnectionsThe quick cam mechanism and auto-rotating head help the tool make fast, consistent expansions, with published performance up to 35% faster for 3/8 inch to 1 inch connections. Tight-Space ControlThis Milwaukee ProPEX expander uses a compact right-angle layout and extended paddle-style trigger so you can work one-handed where framing, pipe runs, and other obstructions limit access. Built for the JobsiteAll-metal gears and an integrated metal frame are there for one reason: to hold up better when this plumbing installation tool gets used hard day after day.
Overview
The Milwaukee M12 FUEL ProPEX Expander with 1/2 in. to 1 in. RAPID SEAL ProPEX Expander Heads, model 2532-20, is built for plumbers and mechanical installers who need to make ProPEX connections faster and with less hassle in finished walls, stud bays, and tight utility spaces. This is a cordless ProPEX expander designed for PEX plumbing installation and connection expansion. If you already work on the Milwaukee M12 platform, this tool gives you a compact, jobsite-ready way to handle 3/8 inch to 1 inch expansion work without dragging out a manual expander.
What matters most here is speed and consistency. Milwaukee calls this its fastest 3/8 inch to 1 inch expansion tool, with up to 35% faster connections, and the built-in auto-rotating mechanism helps create uniform expansions from cycle to cycle. On the job, that means less fighting the tool and less variation in your connection prep. Pair that with the included RAPID SEAL ProPEX expander heads and you also get up to 65% faster sealing at 45 degrees, which matters when lower temperatures slow down seal time and hold up pressure testing.
The design is clearly aimed at real install work, not bench-top convenience. The right-angle head lets you work closer to corners, between studs, and around existing pipe runs where a bulkier inline tool would be awkward. Milwaukee also gives this expander an extended dual actuating trigger and paddle switch setup, which helps when your wrist angle is bad and you need to reach the trigger from different hand positions. That sounds small until you are working in a cabinet base or rough-in cavity and trying to keep the pipe steady with your other hand.
Durability is another strong point. The tool uses all-metal gears and an integrated metal frame, which is what you want on a specialty plumbing tool that gets moved from rough-in to service work and back again. Milwaukee also ties in its FUEL platform hardware with a POWERSTATE brushless motor and REDLINK PLUS protection, so the tool is built not just for speed, but also for cooler running and better protection against overload, overheating, and over-discharge.
Day-to-day usability is solid too. There is an LED work light for dark cavities and mechanical spaces, plus an onboard fuel gauge so you can keep an eye on runtime before you climb into the next tight spot. The complete kit contents supplied with this version make it practical right out of the case for common residential and light commercial ProPEX work: 1/2 inch, 3/4 inch, and 1 inch RAPID SEAL heads, expander cone grease, and a carry case. Just note that this is sold as a bare tool configuration on the power side, so the battery and charger are not included.
From a system standpoint, the big advantage is M12 compatibility. This expander works with all Milwaukee M12 batteries, which is a real plus for plumbers who already run M12 inspection tools, compact drills, lights, or service tools. Instead of adding another battery platform just for your PEX expansion tool, you can keep everything on the same 12V cordless system and swap packs as needed.
Who should buy it? If you install Uponor ProPEX connections regularly and want a compact cordless plumbing tool that speeds up expansion work, this is the right kind of upgrade. It makes the most sense for plumbers, remodelers, and service pros who work in occupied spaces and tight framing where one-handed use and compact size matter. If you only make occasional PEX connections, a manual tool may still get you by. But if ProPEX is part of your weekly work, the Milwaukee M12 FUEL ProPEX Expander with 1/2 in. to 1 in. RAPID SEAL ProPEX Expander Heads saves time where it counts.
Built to Work Between Studs and Pipe Runs
The compact right-angle layout is the feature that makes this tool pay for itself. It is easier to position in framed walls, under sinks, and around existing plumbing where a larger expander would slow you down.
- Compact right-angle design supports one-handed use in confined locations
- Extended dual actuating trigger is easier to reach from awkward working angles
- LED work light helps in dark wall cavities and mechanical spaces
Uniform Expansions Without Fighting the Tool
The auto-rotating mechanism is not just a gimmick. It helps create quick, even expansions so your ProPEX connections stay more consistent, especially when you are repeating the same connection size over and over.
- Auto-rotating head provides quick, uniform expansions
- Quick cam mechanism is designed for fast, continuous expansion cycles
- Capacity covers 3/8 inch to 1 inch ProPEX expansion work
Ready for Daily Plumbing Service and Rough-In Work
This setup is aimed at plumbers who want to grab one case and go. The included RAPID SEAL heads cover common connection sizes, and the case helps keep the specialty parts together instead of floating around the truck.
- Includes 1/2 inch, 3/4 inch, and 1 inch RAPID SEAL ProPEX expander heads
- Includes ProPEX expander cone grease and carry case
- Works with all Milwaukee M12 batteries

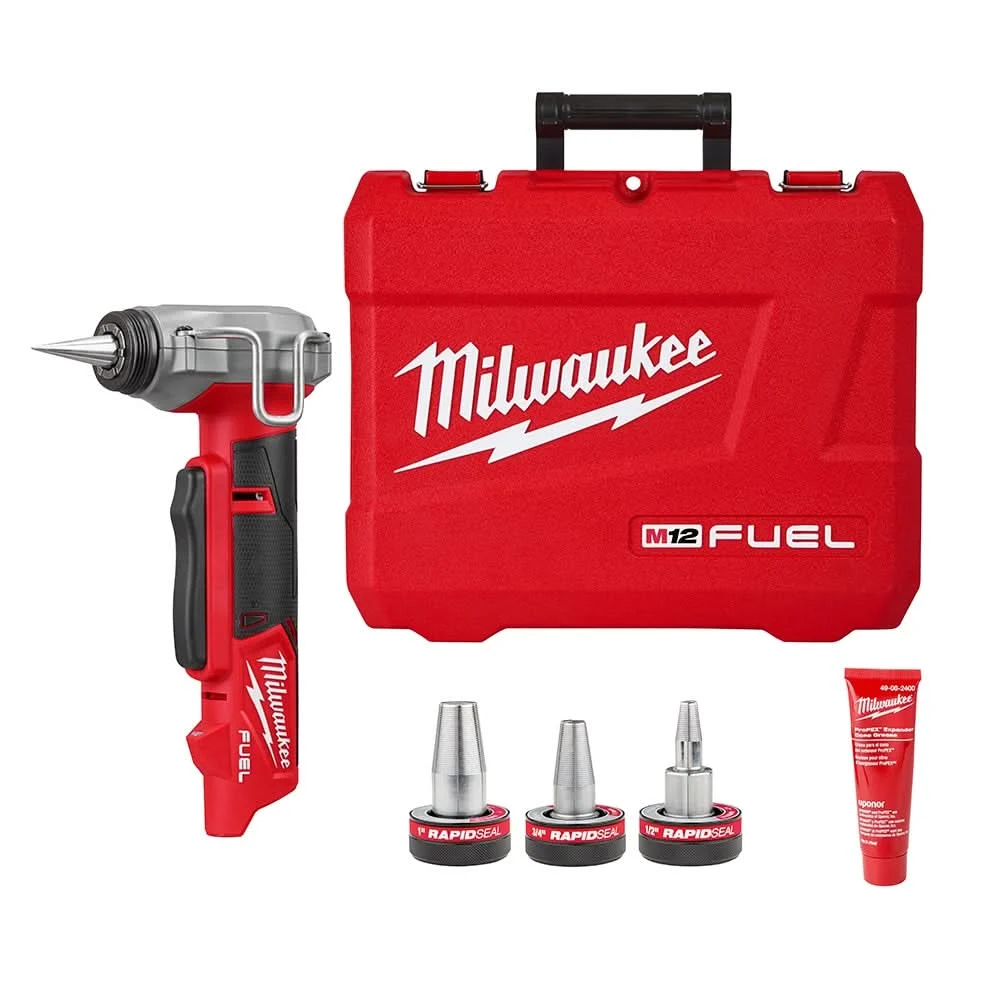

What’s in the Box
- (1) Milwaukee M12 FUEL ProPEX Expander, 2532-20
- (1) 1/2 in. ProPEX Expander Head with RAPID SEAL, 49-16-2414
- (1) 3/4 in. ProPEX Expander Head with RAPID SEAL, 49-16-2416
- (1) 1 in. ProPEX Expander Head with RAPID SEAL, 49-16-2418
- (1) ProPEX Expander Cone Grease, 49-08-2400
- (1) Carry Case
Battery and charger are sold separately.
Key Specifications
| Battery Platform | M12 |
|---|---|
| Voltage (V) | 12V |
| Capacity | 3/8 in. to 1 in. |
| Length (in) | 7.28 in. |
| Width (in) | 3.74 in. |
| Height (in) | 11.73 in. |
| Weight (lbs) | 4.54 lb |
| Switch Type | Paddle Switch |
Compatibility
Battery PlatformCompatible with all Milwaukee M12 batteries. Connection RangeDesigned for ProPEX expansion work from 3/8 in. to 1 in. Included HeadsShips with 1/2 in., 3/4 in., and 1 in. RAPID SEAL ProPEX expander heads for common plumbing installation sizes.
Built For
Plumbing PEX Installation ProPEX Connections Residential Rough-In Service Plumbing Mechanical Rooms Remodeling Tight Access Work
Pro Tip
If you are working in colder conditions, the included RAPID SEAL heads are the real advantage here. They are designed to speed sealing at 45 degrees, which can help cut down waiting before pressure testing.
Warranty & Support
5 Year Limited Warranty.
Tool Nut’s Take
Tool Nut’s Take
Milwaukee M12 FUEL ProPEX Expander That Actually Makes Tight Plumbing Work Easier
The Milwaukee M12 FUEL ProPEX Expander with 1/2 in. to 1 in. RAPID SEAL ProPEX Expander Heads is the kind of specialty plumbing tool that earns its spot fast if ProPEX is part of your regular work.
- Who it’s for: Plumbers and remodelers making repeated ProPEX connections in walls, cabinets, and mechanical spaces where compact size matters.
- Why it stands out: The right-angle body, auto-rotating mechanism, and RAPID SEAL heads attack the two things that usually slow this job down: awkward access and waiting on consistent expansions and sealing.
- Worth knowing: This is a bare tool on the power side, so bring your own M12 battery and charger. If you already run M12, that is not a downside at all.
Common Questions
- What battery platform does this tool use? It is compatible with all Milwaukee M12 batteries.
- What connection sizes can it handle? The tool is rated for ProPEX expansion work from 3/8 inch to 1 inch.
- Is the battery and charger included? No. This configuration is sold without a battery and charger.
- Does it include expander heads? Yes. It includes 1/2 inch, 3/4 inch, and 1 inch RAPID SEAL ProPEX expander heads.
- What is the warranty? Milwaukee lists this tool with a 5 Year Limited Warranty.
