Key Features
Tight-Space AccessThe compact right angle head is built to drill and drive where a standard drill simply will not fit. If you are working between studs, inside cabinets, or around installed framing, this design saves time and knuckle room. Controlled FasteningThe electronic clutch delivers up to 125 in-lbs of torque with 11 settings plus drill mode. That gives you better control when driving fasteners instead of overdriving or stripping them. Secure Bit GripA 3/8 inch single sleeve ratcheting chuck makes bit changes quick and holds onto the bit securely. That matters when you are drilling overhead or working one-handed in awkward spots.
Overview

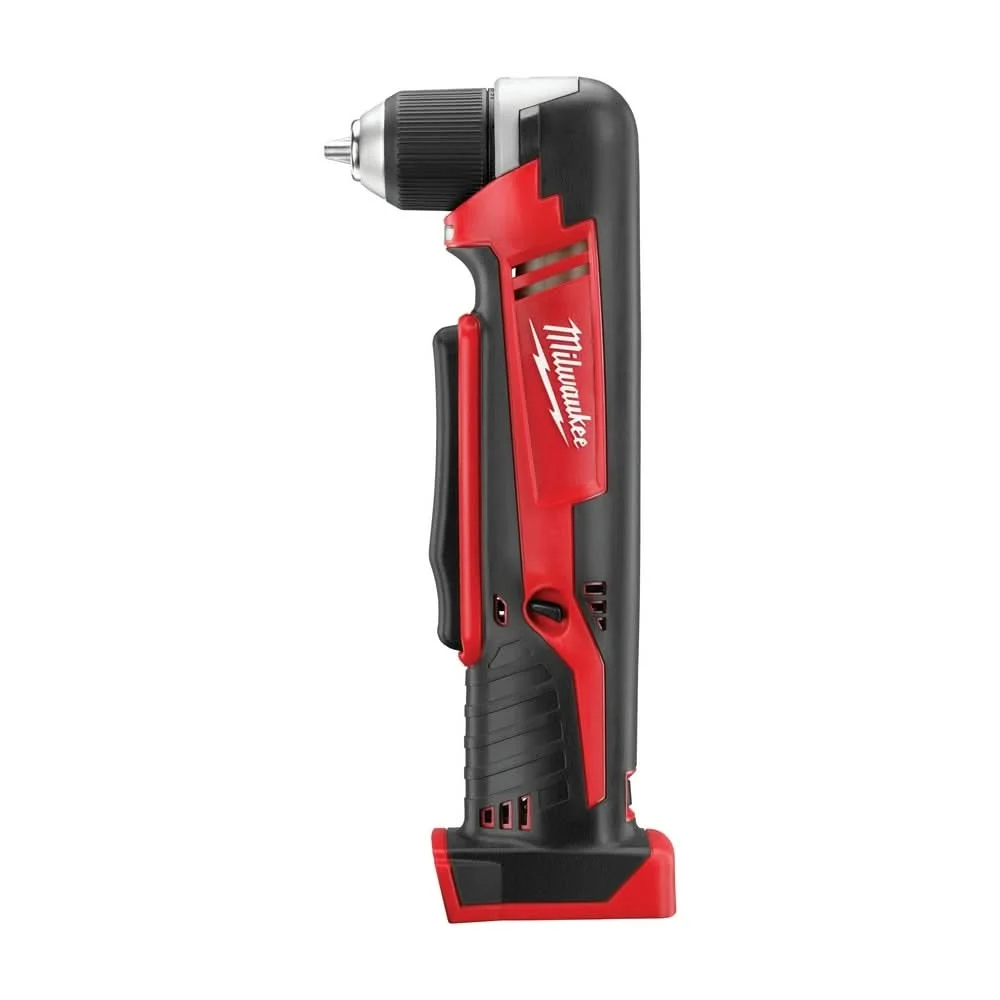

The Milwaukee 2615-20 M18 Cordless Right Angle Drill is a compact cordless drill built for drilling and driving in places where a full-size drill cannot reach. This is a right angle drill designed for tight-space drilling and fastening. Model Number: 2615-20. If you work between studs, inside cabinets, around ductwork, or in other cramped spots, this tool gives you M18 platform power in a shape that is made for that job.
Milwaukee rates this right angle drill at 0 to 1,500 RPM, which is enough speed for common drilling and driving work without turning it into a specialty-only tool. The 125 in-lbs of torque and 11 clutch settings plus drill mode matter because they let you shift from controlled fastening to straight drilling without fighting the tool. For installers and service trades, that kind of control is more useful than raw size on paper.
The standout feature here is the compact head. Milwaukee calls out a very short profile for working in confined areas, and that is the whole reason to buy a tool like this instead of trying to force a standard drill into a bad angle. The 3/8 inch single sleeve ratcheting chuck is also the right fit for the tool. It keeps the front end compact while still giving you solid bit retention for everyday drill bits and fastening accessories.
On the user side, Milwaukee built in a few things that make this more practical on real work, not just on a spec sheet. The built-in LED helps light up the work surface when you are inside a cabinet or drilling between framing members, and the clutch position indicator gives you quick visual feedback. The extended multi-position paddle switch is also worth mentioning because a right angle drill gets used in odd body positions. A longer switch gives you more ways to hold it comfortably and keep control.
This model uses Milwaukee REDLINK Intelligence, which is Milwaukee’s system for optimized performance and overload protection through communication between the tool, battery, and charger. In plain terms, that means the tool is designed to work as part of the M18 system instead of acting like a standalone drill. It is also compatible with M18 REDLITHIUM batteries, including compact and extended capacity packs sold separately, so you can tailor the setup for tighter access or longer runtime.
The Milwaukee 2615-20 M18 Cordless Right Angle Drill is a good fit for electricians, plumbers, HVAC installers, cabinet installers, remodelers, punch-list crews, and serious DIY users who already run M18 batteries. If you need a drill for general open-space drilling all day, a standard drill/driver will still be the better first pick. But if tight-space access is the problem you are trying to solve, this is the kind of tool that earns its place fast.
At a Glance
18VM18 Platform 1,500 RPMNo-Load Speed 125 in-lbsPeak Torque 3/8 inRatcheting Chuck
Milwaukee 2615-20 M18 Cordless Right Angle Drill for Tight Framing Bays
This is where a right angle drill proves its value. The compact head and cordless M18 setup let you drill inside framed walls and other restricted spaces without dragging out an attachment or changing your whole approach.
- Designed specifically for drilling and driving in tight spaces
- Short head profile helps reach between studs and into confined work areas
- 0 to 1,500 RPM gives it the speed for common drilling and fastening tasks
Built for Better Control in Awkward Positions
Awkward access is only half the battle. You also need a tool that is easy to hold and easy to meter when you are one-handed, overhead, or working around finished surfaces. This drill is set up for that kind of work.
- Electronic clutch offers 11 settings plus drill mode for controlled fastening
- Extended multi-position paddle switch improves comfort and handling
- Built-in LED helps light the work surface and indicate clutch position
What’s in the Box
- (1) Milwaukee 2615-20 M18 Cordless Right Angle Drill (Bare Tool)
- (1) Owner’s Manual
Battery and charger are sold separately.
Key Specifications
| Battery Platform | M18 |
|---|---|
| Voltage (V) | 18V |
| Motor Type | Brushed |
| No-Load Speed (RPM) | 0 – 1,500 RPM |
| Peak Torque | 125 in-lbs |
| Chuck Size | 3/8 in |
| Chuck Type | Single Sleeve Ratcheting |
| Clutch Settings | 11 settings + drill mode |
| Speed Settings | 1 |
| Length | 11.25 in |
| Hammer Function | No |
| ONE-KEY Enabled | No |
Compatibility
Battery PlatformWorks with Milwaukee M18 batteries. Milwaukee lists compatibility with M18 REDLITHIUM battery packs, including compact and extended capacity options. Tool-Only ConfigurationThis is a bare tool. It is intended for users who already own compatible M18 batteries and an M18 charger. Bit InterfaceUses a 3/8 inch single sleeve ratcheting chuck for standard drill and driver accessories that fit the chuck capacity.
Built For
Electrical Plumbing HVAC Cabinet Installation Remodeling General Contracting Tight-Space Drilling Fastening in Confined Areas
Pro Tip
If you are using this drill for repeated work between studs or inside casework, pair it with a compact M18 battery instead of a larger pack when clearance matters more than runtime. That keeps the overall setup easier to maneuver in the exact places this tool is made for.
Warranty & Support
5 Year Limited Warranty.
Tool Nut’s Take
Tool Nut’s Take
A Real Fix for Tight-Space Drilling
The Milwaukee 2615-20 M18 Cordless Right Angle Drill makes sense for guys who keep running into places a standard drill cannot reach and are tired of fighting adapters and bad body position.
- Who it’s for: Electricians, plumbers, HVAC techs, installers, remodelers, and M18 users who need a dedicated drill for cramped access.
- Why it stands out: The compact right angle layout, ratcheting 3/8 inch chuck, and electronic clutch make it more useful for real fastening and drilling work than a one-trick specialty tool.
- Worth knowing: This is a bare tool, and it is not the one you buy as your only drill. You buy it because tight clearance is costing you time, and this fixes that problem.
Common Questions
- What kind of tool is this? This is a cordless right angle drill designed for drilling and fastening in tight spaces.
- What battery system does it use? It runs on the Milwaukee M18 battery platform.
- Does it have a hammer drilling function? No. Milwaukee lists this model as a non-hammer right angle drill.
- What is the chuck size? It uses a 3/8 inch single sleeve ratcheting chuck.
- What is the top speed? The no-load speed range is 0 to 1,500 RPM.
