Milwaukee 49-16-1578 7/8″ & 1-5/8″ x 1-5/8″ Combination Strut Shearing Dies

Key Features

Built for the 2933These Milwaukee 7/8″ & 1-5/8″ x 1-5/8″ Combination Strut Shearing Dies are made exclusively for the M18 FORCELOGIC Single Channel Strut Shear. That means proper fit, clean operation, and no guessing about compatibility. Clean repeatable shearsThe die profile is built for accurate and consistent cuts in standard strut. On the job, that means installation-ready results without the extra cleanup that slows you down. Fast die swapsTool-free die changes and laser-etched markings make it easier to switch sizes and install the set correctly. Less downtime at the shear means more strut cut and hung.

Overview

The Milwaukee 7/8″ & 1-5/8″ x 1-5/8″ Combination Strut Shearing Dies, model 49-16-1578, are a replacement and application-specific die set for Milwaukee strut shearing equipment. This is a strut shearing die set designed for cutting standard strut profiles with clean, consistent results. If you already run the Milwaukee M18 FORCELOGIC Single Channel Strut Shear, this die set gives you coverage for 7/8 inch and 1-5/8 inch by 1-5/8 inch standard strut sizes in one package.

What matters here is not just the size callout, but what it does on the job. These dies are made to deliver accurate, repeatable shears, so you get cuts that are ready for installation instead of cuts that create more work. Milwaukee also rates the set for up to 10,000 shears per die set, which matters for contractors doing high-volume strut work where wear life affects real cost over time.

Milwaukee built this set specifically for its M18 FORCELOGIC Single Channel Strut Shear, not as a one-size-fits-all accessory. That exclusive compatibility is a good thing. It means the dies are engineered around the tool’s shear mechanism, retention system, and intended cutting geometry. The result is a better fit and a more predictable cut than trying to make a general accessory do a dedicated job.

Jobsite practicality is clearly part of the design. Tool-free die changes help keep the shear moving between applications instead of sitting on the floor while someone digs for wrenches. Laser-etched markings help with size identification and installation, which sounds small until you are swapping dies in the field and want to avoid installing the wrong set. Milwaukee also calls out that there are no exposed blades, which is part of why strut shearing is often a cleaner, more controlled option for this kind of work.

Material and size details are straightforward and important. The dies are steel, the set weighs 1.61 pounds, and the overall dimensions are 3.11 inches long by 3 inches wide by 0.75 inches high. This set is intended for standard 1-5/8 inch wide strut and 7/8 inch strut height applications. Milwaukee also states these dies are for up to 12 gauge 1-5/8 inch by 1-5/8 inch strut, and specifically notes they are not for use in stainless steel strut.

For the right user, this is a productivity accessory, not a generic replacement part. It makes the most sense for electrical, mechanical, plumbing, and general construction crews that install a lot of channel strut and want faster, cleaner cuts with the Milwaukee cordless strut shear platform. If you own the compatible M18 FORCELOGIC shear and regularly work in these strut sizes, this is the die set that keeps the tool useful across common field applications.

Milwaukee 7/8″ & 1-5/8″ x 1-5/8″ Combination Strut Shearing Dies for Faster Size Changes

This die set is about keeping a strut shear useful across common channel sizes without slowing the crew down. You get a dedicated two-piece Milwaukee die set with clear markings and a profile designed for clean strut shearing.

• Made for the Milwaukee M18 FORCELOGIC Single Channel Strut Shear
• Laser-etched markings help identify size and install the dies correctly
• No exposed blades and tool-free die changes support cleaner, faster work

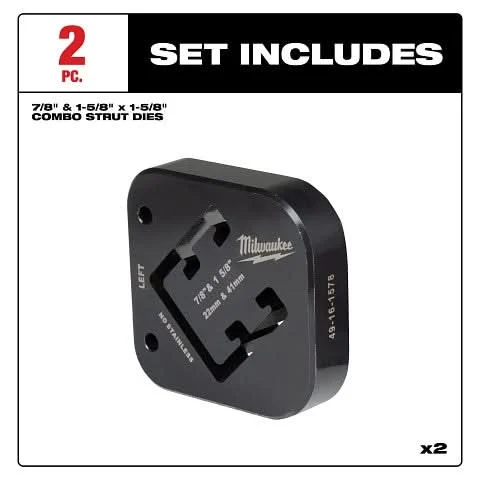

What’s in the Box

• (2) Milwaukee 7/8″ & 1-5/8″ x 1-5/8″ Combination Strut Shearing Dies

Key Specifications

Tool Type	Combination strut shearing dies
Material	Steel
Weight (lbs)	1.61 lbs
Length	3.11 in
Width	3 in
Height	0.75 in
For Strut Width	1-5/8 in
For Strut Height	7/8 in

Compatibility

Compatible Tool PlatformExclusively compatible with the Milwaukee M18 FORCELOGIC Single Channel Strut Shear. Strut TypesFor standard strut, including pre-galv strut, green strut, zinc-plated strut, and hot dipped galvanized strut. Material LimitationNot for use in stainless steel strut.

Built For

Electrical Mechanical trades Plumbing HVAC General Contracting Strut installation Standard channel strut cutting High-volume prefab and install work

Tool Nut’s Take

Tool Nut’s Take

A must-have die set if your crew lives on strut

The Milwaukee 7/8″ & 1-5/8″ x 1-5/8″ Combination Strut Shearing Dies make a lot of sense for anyone trying to get more range and less downtime out of the M18 FORCELOGIC shear.

• Who it’s for: Contractors and installers already using the Milwaukee strut shear for electrical, mechanical, plumbing, and HVAC support work.
• Why it stands out: Exclusive tool fit, clean repeatable shears, laser-etched markings, and tool-free changes all add up to less messing around between cuts.
• Worth knowing: This is not a universal die set, and it is not for stainless steel strut. If those two limits match your work, it is the right accessory.

Common Questions

• What tool do these dies fit? They are exclusively compatible with the Milwaukee M18 FORCELOGIC Single Channel Strut Shear.
• What strut sizes are these dies made for? This set is for 7/8 inch strut and 1-5/8 inch by 1-5/8 inch standard strut applications.
• Can these dies be used on stainless steel strut? No. Milwaukee states these dies are not for use in stainless steel strut.
• How long are the dies expected to last? Milwaukee rates the die set for up to 10,000 shears per set.
