Key Features
Controlled Plunge CutsThe plunge base gives your compatible router smooth, stable travel with 2.5 inches of total plunge depth. That matters when you need repeatable depth control for grooves, dados, hinge mortises, and edge work.Guide Rail PrecisionThe guide rail adapter is built for straight, consistent passes on compatible Milwaukee guide rails. Cam lock and anti-tilt feet help keep the router tracking clean instead of wandering during long cuts.Milwaukee Router UpgradeBoth pieces use aluminum construction for durability and stability. If you already own a compatible Milwaukee router, this kit adds plunge routing and guide rail capability without buying another motor.
Overview

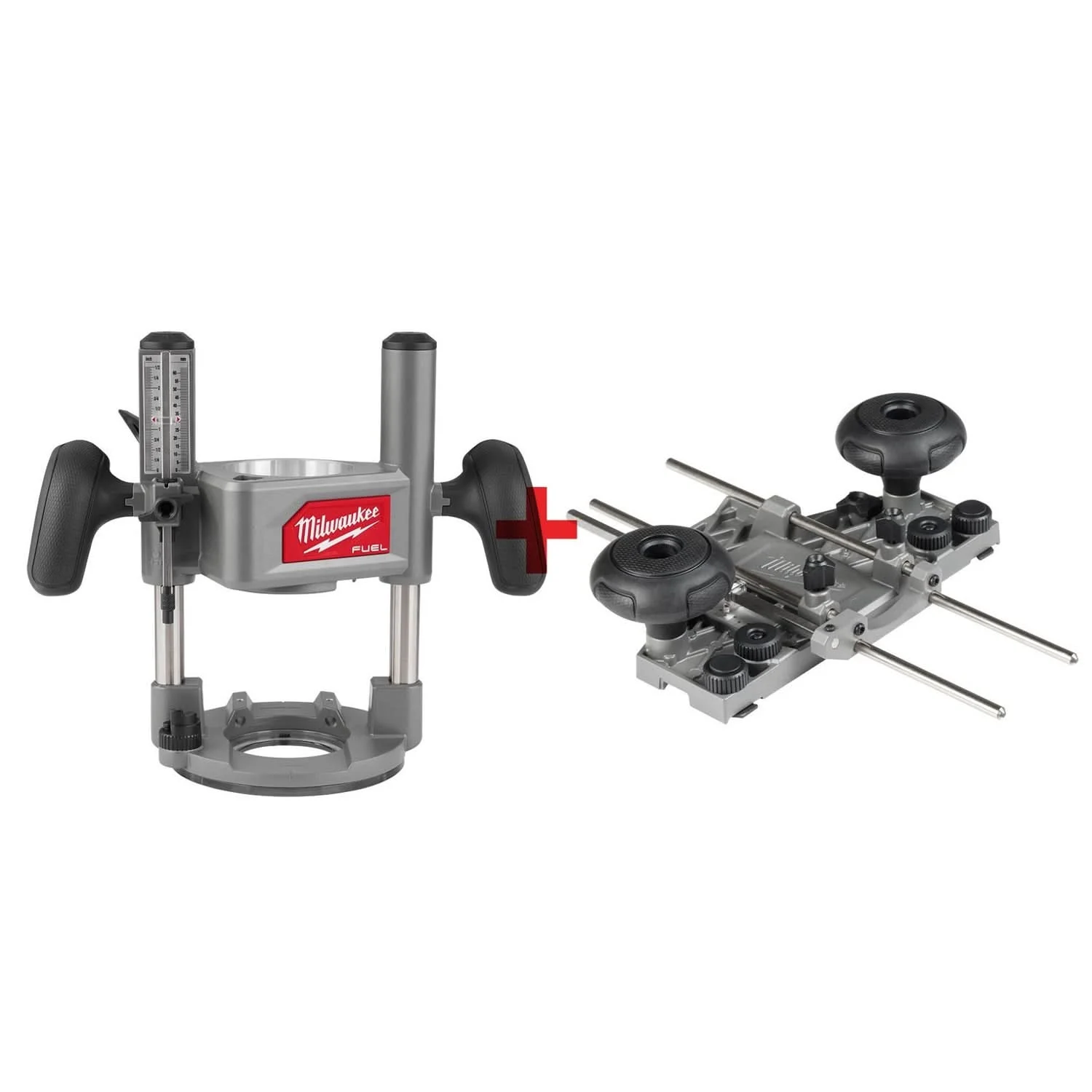

The Milwaukee M18 Fuel 1/2″ Router Plunge Base Only with Router Guide Rail Adapter is a two-piece router accessory kit built for users who want more control and more ways to use a compatible Milwaukee cordless router. This is a router accessory kit designed for plunge routing and guide rail straight-cut routing with compatible Milwaukee cordless routers. Model number: 48-10-2838-48-11-2838. If you already have the router motor, this setup gives you the ability to make precise plunge cuts and guide-rail cuts without stepping up to a separate dedicated machine.
The plunge base is the part that makes this kit especially useful for cabinet work, trim work, and clean routing jobs where depth accuracy matters. It provides 2.5 inches of total plunge depth, along with a 6-step depth stop turret in 1/8-inch increments. In real use, that means you can rough in common cut depths quickly, then fine-tune from there using the depth rod with micro-adjustment. That combination saves time when you are repeating the same cut across multiple pieces and want consistent results without constant measuring and resetting.
Milwaukee built the plunge base around a machined aluminum body, which is exactly what you want here. A plunge base has to stay stable through the cut, and lighter-duty designs can flex or feel vague at the handles. The aluminum construction helps the base stay planted and smooth through the plunge motion. The base also uses a cam lock to secure the tool and make base changes easier through the modular console, so switching your router setup is more practical on the bench or on the jobsite.
The guide rail adapter brings a different kind of value. It is made for the Milwaukee M18 FUEL Compact Trim Router (2723-20) and the Milwaukee M18 FUEL 1/2″ Router (2838-20), and it works with Milwaukee guide rails for straight, repeatable routing passes. For anyone doing long dados, edge trimming, or guided cuts where drift shows up fast, that matters. Milwaukee added cam lock and anti-tilt feet so the adapter moves smoothly and stays controlled on the rail instead of rocking or binding partway through the pass.
This kit is also set up with jobsite-friendly measuring details. Both the plunge base and the adapter use depth scales marked in inches and millimeters, which is a small feature that pays off when different drawings, setups, or crew preferences are in play. The guide rail adapter includes a gauge block to improve setup accuracy and cut down adjustment time, and it offers 2 inches of total adjustment depth capacity. The overmold pommels on the adapter add comfort and help steady the cut, which becomes more important the longer the pass gets.
Compatibility is the key buying point here. This is not a complete router. The plunge base is designed to expand the versatility of the Milwaukee M18 FUEL 1/2″ Router, which is sold separately. The plunge base is also compatible with the Milwaukee 6-inch Template Base, Guide Rail Adapter, dust shroud, and edge guide, all sold separately. That modular approach is useful if you want one router platform that can handle freehand trimming, guided straight cuts, and controlled plunge work by changing accessories instead of buying multiple dedicated tools.
Who should buy it? Woodworkers, finish carpenters, cabinet installers, remodelers, and serious DIY users who already own a compatible Milwaukee router are the right fit. If your work includes grooves, mortises, shelf pin jigs, straight edge cuts, or repeat routing setups where depth and tracking matter, this kit makes a lot of sense. If you do not already own the compatible router motor, keep in mind this is an accessory package, not a ready-to-run router kit.
Get Accurate Plunge Depth Without Guesswork
The plunge base is built for repeatable depth control, which is what separates clean routing work from trial-and-error cuts. Between the turret and the micro-adjustment rod, you can dial in depth changes with a lot more confidence.
- 2.5 inches of total plunge depth for a wider range of routing tasks
- 6-step depth stop turret with 1/8-inch increments for repeatable setups
Track Straight on Guide Rails
When a router has to follow a rail cleanly, stability matters as much as power. This adapter is built to keep the router moving smoothly along compatible Milwaukee guide rails for straight cuts with less setup frustration.
- Cam lock and anti-tilt feet help maintain smooth, consistent passes
- 2 inches of total adjustment depth capacity with a gauge block to speed setup
What’s in the Box
- (1) Milwaukee 48-10-2838 M18 FUEL 1/2″ Router Plunge Base Only
- (1) Milwaukee 48-11-2838 Router Guide Rail Adapter
Compatible router, guide rails, dust shroud, edge guide, and 6-inch template base are sold separately.
Key Specifications
| Total Plunge Depth | 2.5 in |
|---|---|
| Depth Stop Turret | 6-step |
| Turret Step Increment | 1/8 in |
| Construction | Aluminum |
| Guide Rail Adapter Adjustment Depth | 2 in |
| Measurement Scale | Inches and millimeters |
Compatibility
Router Motor CompatibilityGuide rail adapter fits the Milwaukee M18 FUEL Compact Trim Router (2723-20) and Milwaukee M18 FUEL 1/2″ Router (2838-20).Plunge Base UseThe plunge base expands the versatility of the Milwaukee M18 FUEL 1/2″ Router, sold separately.Guide Rail SystemThe adapter is compatible with Milwaukee guide rails for guided straight routing cuts.Accessory SupportThe plunge base is compatible with the Milwaukee 6-inch Template Base, dust shroud, edge guide, and guide rail adapter, all sold separately.
Built For
WoodworkingCabinet InstallationFinish CarpentryRemodelingTrim RoutingGuide Rail Straight CutsGrooves and DadosRepeatable Depth Routing
Pro Tip
Use the 6-step turret to get close fast, then finish with the micro-adjustment on the depth rod. It is the easiest way to hit repeat cuts without overshooting your final depth.
Warranty & Support
The Milwaukee 48-10-2838 plunge base and the Milwaukee 48-11-2838 router guide rail adapter each include a 5 Year Limited Warranty.
Tool Nut’s Take
Tool Nut’s Take
Milwaukee M18 Fuel 1/2″ Router Plunge Base Only with Router Guide Rail Adapter Adds the Capability Most Router Owners Actually Want
If you already own the compatible Milwaukee router, this kit is the smart way to add plunge routing and guide-rail accuracy without buying a second machine.
- Who it’s for: Woodworkers, cabinet guys, trim carpenters, and remodelers who need more precise router control than a fixed-base setup gives them.
- Why it stands out: You get a solid aluminum plunge base with useful depth control plus a rail adapter that is built to stay smooth and stable on compatible Milwaukee guide rails.
- Worth knowing: This is an accessory package, not a complete router. You need the compatible Milwaukee router motor, and several related accessories are sold separately.
Common Questions
- Is this a complete router? No. This is an accessory kit that includes a plunge base and a router guide rail adapter. The compatible router is sold separately.
- Which routers does the guide rail adapter fit? It is compatible with the Milwaukee M18 FUEL Compact Trim Router (2723-20) and the Milwaukee M18 FUEL 1/2″ Router (2838-20).
- How much plunge capacity does the plunge base offer? The plunge base provides 2.5 inches of total plunge depth.
- Does the guide rail adapter work with Milwaukee guide rails? Yes. The adapter is designed to work with Milwaukee guide rails for straight, consistent routing passes.
