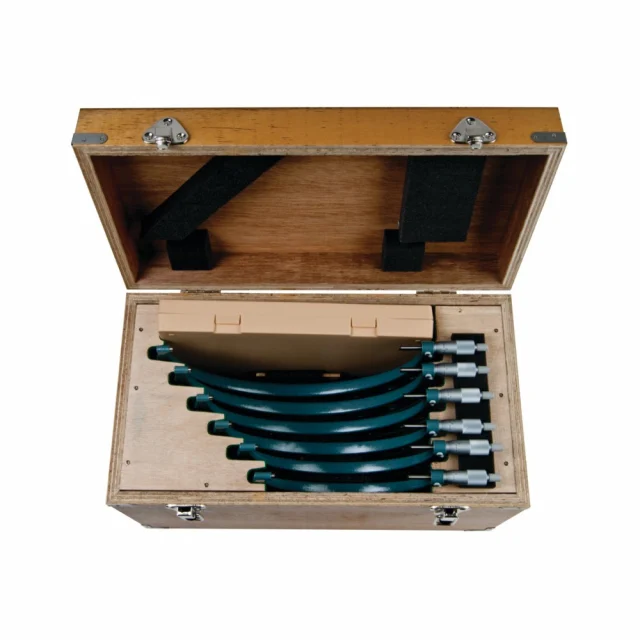

103-906 Includes Only:
- Box
- Setting standard (from 1″ upward)
- Key
- Outside Micrometers: 103 Series Outside Micrometer, 6-7″ Range, 103 Series Outside Micrometer, 7-8″ Range, 103 Series Outside Micrometer, 8-9″ Range, 103 Series Outside Micrometer, 9-10″ Range, 103 Series Outside Micrometer, 10-11″ Range, 103 Series Outside Micrometer, 11-12″ Range
- Certificate of inspection (0-2″ range)
Features:
- The frame has a ha mmertoe baked enamel finish for durability
- Scale is laser etched on thimble and sleeve
- Carbide facing on the spindle and anvil resists wearing to keep surfaces flatter with longer accuracy
- The speeder is always for quick rotation of the spindle
- Comes with the standard bar
- Supplied in a fitted plastic case
The Mitutoyo outside micrometer features either a ratchet stop or friction thimble that applies constant measuring force on a workpiece for exact repetitive readings. The Mitutoyo outside micrometer is ideal for measuring metal and non-metal workpieces. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. The friction thimble models allow for constant-force measurement for single-handed operation.
Technical Details
| Range | 0-6″ |
| Accuracy | ±0.00025, 0.0002″ |
| Ratchet/Thimble | Ratchet Stop |
| Mass | 7695 g |
| Graduation | 0.0010″ |
| Measuring Force | 5-10 N |
| Flatness | 0.000024″ |
| Parallelism | [.00008 + .00004 (L/4)]” or less |
| Measuring face | Carbide-tipped, micro-lap finish |
| Measuring spindle | With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (<300 mm) , spindle pitch 0.5 mm |
| Scale | Thimble and sleeve satin chrome finish, ø18 mm |
| Digital/Analog | Analog |
| Measuring spindle | With spindle lock, ø6,35 mm , spindle pitch 0.635 mm |
