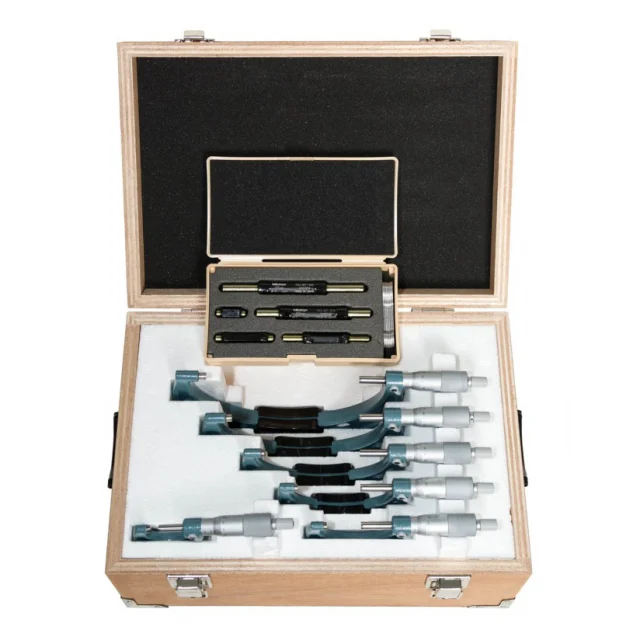

103-913-50 Includes Only:
- Box
- Setting standard (from 25 mm upward)
- Key
- Certificate of inspection (0-50 mm range)
- Outside Micrometers: 103-137, 103-138, 103-139-10, 103-140-10, 103-141-10, 103-142-10
Features:
- The frame has a ha mmertoe baked enamel finish for durability
- Scale is laser etched on thimble and sleeve
- Carbide facing on the spindle and anvil resists wearing to keep surfaces flatter with longer accuracy
- The speeder is always for quick rotation of the spindle
- Comes with the standard bar
- Supplied in a fitted plastic case
The Mitutoyo outside micrometer features either a ratchet stop or friction thimble that applies constant measuring force on a workpiece for exact repetitive readings. The Mitutoyo outside micrometer is ideal for measuring metal and non-metal workpieces. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. The friction thimble models allow for constant-force measurement for single-handed operation.
Technical Details
| Range | 0 – 150 mm |
| Accuracy | ±3, 2 µm |
| Ratchet/Thimble | Ratchet Stop |
| Mass | 2260 g |
| Graduation | 0.01 mm |
| Measuring Force | 5-10 N |
| Flatness | 0.6 µm |
| Measuring face | Carbide-tipped, micro-lap finish |
| Measuring spindle | With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (<300 mm) , spindle pitch 0.5 mm |
| Scale | Thimble and sleeve satin chrome finish, ø18 mm |
| Digital/Analog | Analog |
| Measuring spindle | With spindle lock, ø6,35 mm , spindle pitch 0.5 mm |
