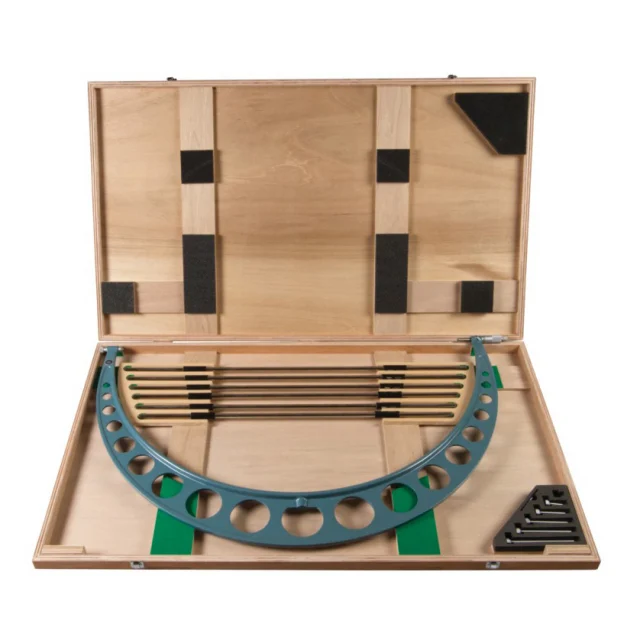

104-204 Includes Only:
- Fitted wooden case
- Setting standards; 30, 31, 32, 33, 34, 35″
- Anvils
Features:
- The ratchet mechanism provides an audible to ensure the measurement is being performed at a constant pre-set force
- Functions include Origin Set, Zero/ABS, Hold, Function Lock, Data Output
- Alarm: Low Voltage, Counting Value Composition Error
- Zero-setting standards bar for each range
- Scale is laser etched on a thimble for quick and easy reading
- Carbide facing on the spindle resists wearing to keep surfaces flatter with longer accuracy
- The speeder is always quick rotation of the spindle
The Mitutoyo outside micrometer features a ratchet stop function and interchangeable anvils for measuring a wide range of workpiece sizes and material types with precision. The Mitutoyo ratchet stop outside the micrometer is ideal for measuring metal and non-metal workpieces by controlling the amount of force applied by the spindle. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. Interchangeable anvils allow for measuring a wide range of workpiece sizes.
Technical Details
| Range | 30 – 36″ |
| Dimensions | |
| Parallelism | [0.00008 + 0.00004 (L/4)] “, L = max. range (inch) |
| Mass | 11.88 kg |
| Graduation | 0.001″ |
| Spindle feed error | 0.00015″ |
| Measuring face | Carbide-tipped micro-lap finish spindle and hardened steel anvil |
| Measuring spindle | With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (<300 mm), spindle pitch 0.5 mm |
| Scale | Thimble and sleeve satin chrome finish, ø21 mm |
| Digital/Analog | Analog |
| Measuring spindle | With spindle lock, ø8 mm, spindle pitch 0.635 mm |
