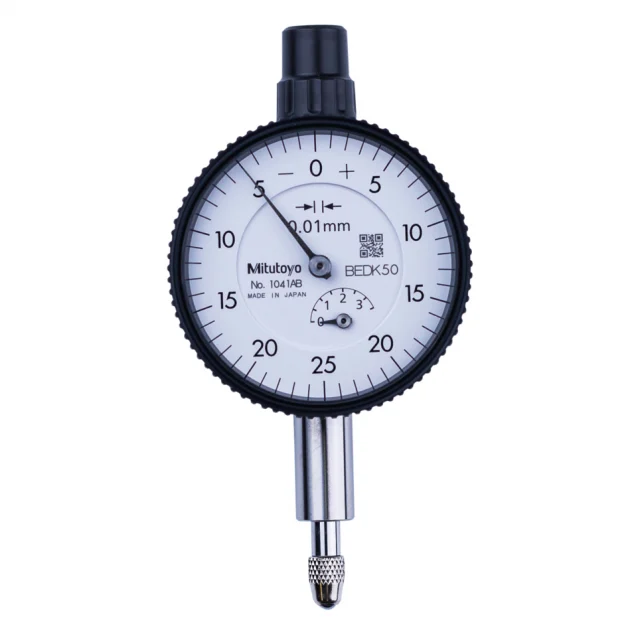

Mitutoyo, 1041AB, Series 1 Compact Dial Indicator, Higher Dial Reading, 0-3.5mm Range, 0.01 Graduation, 0-25-0 Dial Reading, Flat Back
Features:
- Thumb screw bezel lock is easy-to-use for zeroing
- Rack gear is machine ground for tighter fit, increased accuracy
- Greater rigidity in the bearing plate reduces retracing error by up to 20%
- 4-Screw mounting increases impact resistance for better, longer accuracy
- No through screw hole on the frame provides better dust resistance
- Contact point is carbide tipped for lasting accuracy, durability
- The indicator is anti-magnetic for better accuracy around metals
- Crystal is glare-free with a scratch-resistant coating
- Manufactured to meet JIS/ISO standards
- Supplied in a fitted plastic case
The compact design of the Mitutoyo Series 1 dial indicator allows for use in tighter, restricted spaces. The jeweled bearing provides great wear resistance and low friction movements for smooth, precise operations. The stem and spindle are constructed of hardened steel for better durability. The glare-free crystal has a scratch-resistant coating for clearer readings and better durability. A revolutionary offset spindle bushing design provides trouble-free stem clamping and a longer clamping range.
Technical Details
| Technology | Mechanical |
| Stem diameter | 8″ / 8mm |
| Units | Metric |
| Thread type | M2.5×0.45 |
| ISO/JIS type | Yes |
| Graduation | 0.01mm |
| Min Range | 0mm |
| Max Range | 3.5mm |
| Range revolution | 0.5mm |
| Dial reading | 0-25-0 |
| Back Type | Flat Back |
| Accuracy revolution | 0.005mm |
| Accuracy | ±0.013µm |
| Measuring Force | 1.4 or lessN |
