Features:

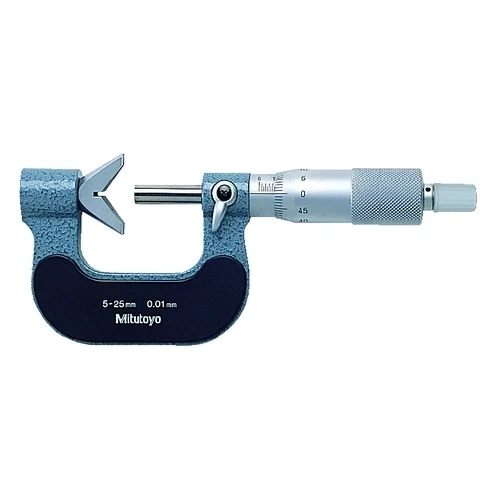

- It measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three or five flutes.
- V-anvils with a centreline groove are available for measuring the pitch diameter of taps by the single-wire method.
Technical Details
| Range: | 0,05 – 0,6″ |
| Accuracy: | ±0.0002″ |
| Flatness: | 0,000024″ (spindle), 0,000052″ (anvil) |
| Remarks: | – |
| Setting standard: | 167-337 ø 0.2″ |
| Mass: | 120 g |
| Measuring surfaces: | Prism angle 60°/108° |
| Graduation: | 0,0001″ |
| Digital/Analog: | Analog |
| Inch-Metric: | Inch |
| Scale: | Thimble and sleeve satin chrome finish, ø18 mm |
| Graduation: | 0,0001″ |
| Measuring spindle: | With spindle lock, ø6,35 mm, spindle pitch 0,75 mm |
