Features:

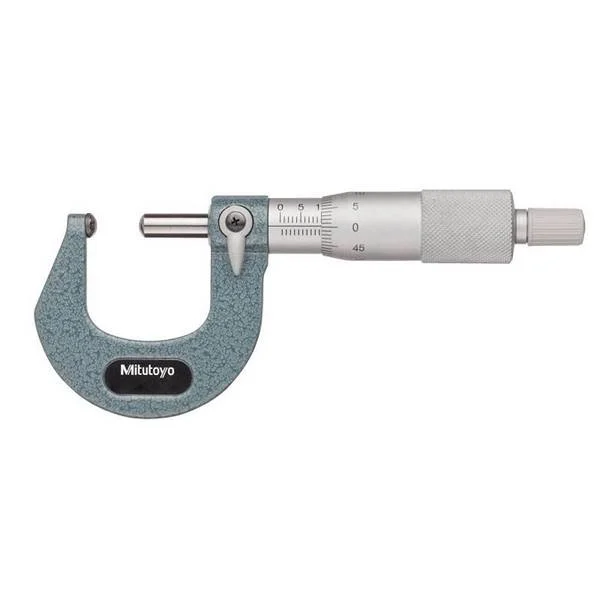

- Designed to measure the wall thickness ofvarious tubing.
- With ratchet stop for constant force.
- Non-slip grip finish (digital models)
- With a standard bar except 0 -1″and 75 – 100mm model.
- Supplied in fitted plastic case
Technical Details
| Digital/Analog: | Analog |
| Inch-Metric: | Metric |
| Range: | 25 – 50 mm |
| Graduation: | 0,01 mm |
| Maximum Permissible Error J MPE: | ±3 µm |
| Flatness: | 0,6 µm |
| Measuring face: | Spindle and anvil: carbide-tipped, micro-lap finish |
| Anvil / Spindle: | Type E, sperical anvil SR=4 mm/ flat spindle |
| Measuring spindle: | With spindle lock, ø6,35 mm, spindle pitch 0,5 mm |
| Scale: | Thimble and sleeve satin chrome finish, ø18 mm |
