Features:

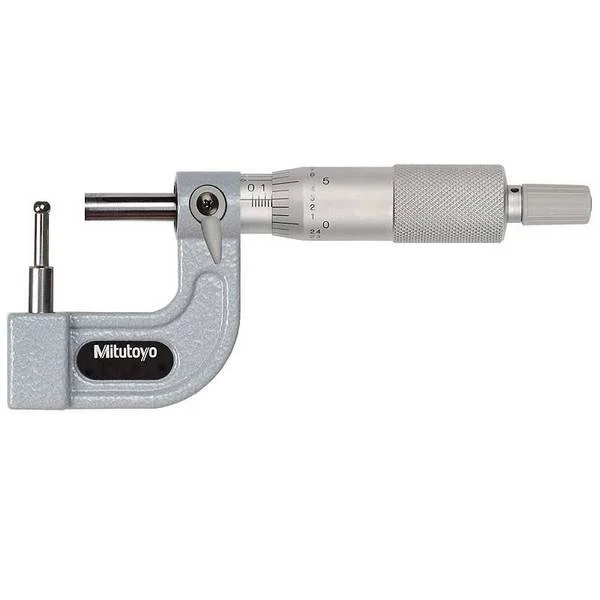

- Designed to measure the wall thickness ofvarious tubing.
- The Tube Micrometers have twocombinations of measuring faces (carbidetipped): spherical-flat type.
- With ratchet stop for constant force.
- With a standard bar except 0 -1″ and 25 – 50mm model.
- Supplied in fitted plastic case.
- Non-slip grip finish
Technical Details
| Digital/Analog: | Analog |
| Inch-Metric: | Metric |
| Range: | 0 – 25 mm |
| Graduation: | 0,01 mm |
| Maximum Permissible Error J MPE: | ±3 µm |
| Flatness: | 0,6 µm |
| Measuring face: | spindle: carbide-tipped, micro-lap finish; anvil: hardened steel |
| Anvil / Spindle: | Type C, spherical pin D=4.7 mm/ flat spindle |
| Measuring spindle: | With spindle lock, ø6,35 mm, spindle pitch 0,5 mm |
| Scale: | Thimble and sleeve satin chrome finish, ø18 mm |
