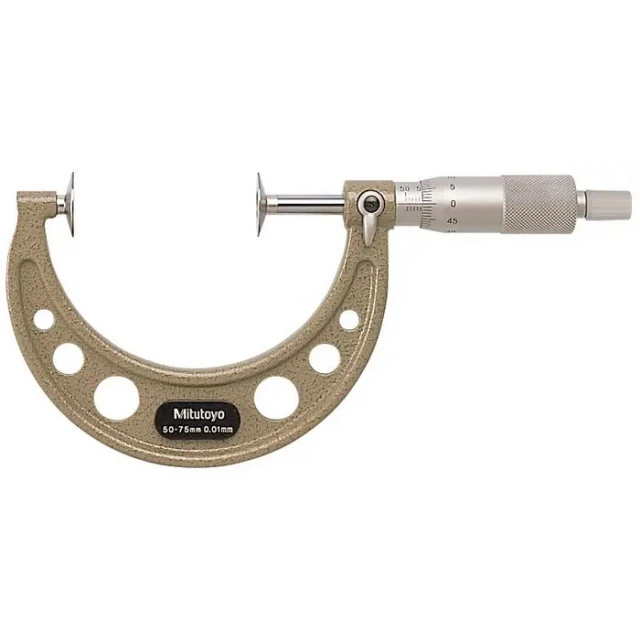

Mitutoyo 123-103 Disc Micrometer, Carbide Tip, 50-75mm

Features:

• Some metric models have measuring surfaces constructed of carbide to reduce wear
• Ratchet mechanism provides an audible cli-ck to ensure measurement is performed with constant force
• Knurled friction thimbles provide quick adjustments even when wearing gloves
• Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
• Frame has a baked enamel finish for durability and longer lifespan
• Supplied in fitted plastic case

The Mitutoyo mechanical disc micrometer uses flat discs made with hardened steel in own Japanese facilities to measure lengths of spur and helical gears. The flatness and thinness of the discs allow for reliable measurements in tight spaces. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements and eliminates over-speed error.
