Features:
- Some metric models have measuring surfaces constructed of carbide to reduce wear
- The Ratchet mechanism provides an audible cli-ck to ensure the measurement is performed with constant force
- Knurled friction thimbles provide quick adjustments even when wearing gloves
- Satin chrome finish on the sleeve and laser-etched measurements on the thimble for easier reading
- The frame has a baked enamel finish for durability and a longer lifespan
- Supplied in fitted plastic case

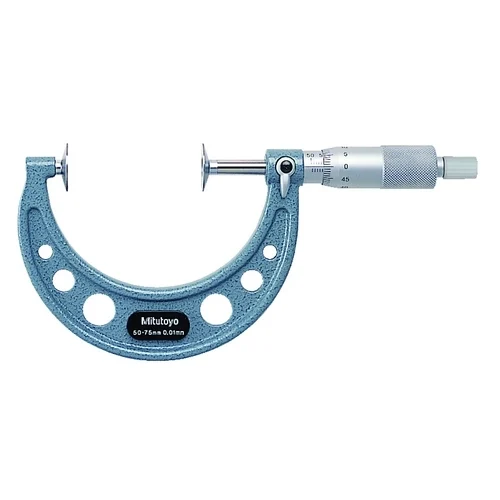

The Mitutoyo mechanical disc micrometer uses flat discs made with hardened steel in Japanese facilities to measure the lengths of spur and helical gears. The flatness and thinness of the discs allow for reliable measurements in tight spaces. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements and eliminates over-speed error.
Technical Details
| Digital/Analog | Analog |
| Inch-Metric | Metric |
| Range | 175 – 200 mm |
| Graduation | 0,01 mm |
| Maximum Permissible Error J Mpe | ±8 µm |
| Flatness | 1.6 µm |
| Parallelism | 8 µm |
| Measuring Spindle | With spindle lock, Dia. 6,35 mm, spindle pitch 0,5 mm |
| Scale | Thimble and sleeve satin chrome finish, Dia. 18 mm |
| Measuring Force | 5 – 10 N |
| Measurable Module | 0.7 – 11 |
| Mass | 890 g |
