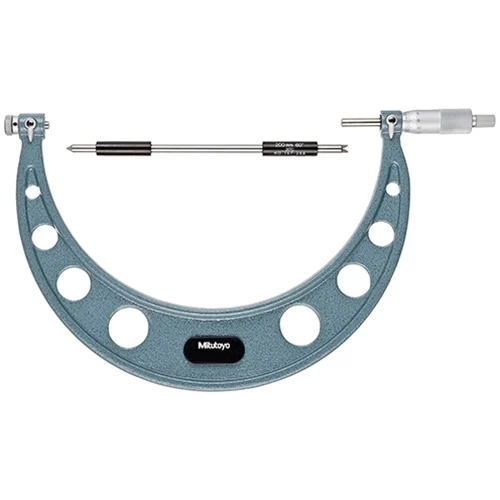

Mitutoyo 126-135 Series 126 Screw Thread Micrometer 250-275mm Range

Mitutoyo, 126-135, Series 126 Screw Thread Micrometer-Interchangeable, 250-275mm Range, 0.01mm graduation

Features:

• Optional interchangeable 60 degree and 55 degree V-Anvil and conical spindle inserts are precision ground hardened, high-grade steel
• Ratchet mechanism provides an audible sound to ensure measurement is performed at a constant force
• Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
• Frame has a baked enamel finish for durability and longer lifespan
• Includes a standard bar
• Supplied in fitted plastic case

The Mitutoyo screw thread micrometer uses optional V-Anvil and conical spindle inserts interchangeably to precisely measure pitch diameters of metric or unified screw threads. A ratchet-stop mechanism provides uniform pressure on a work piece for precise, repeatable measurements.
