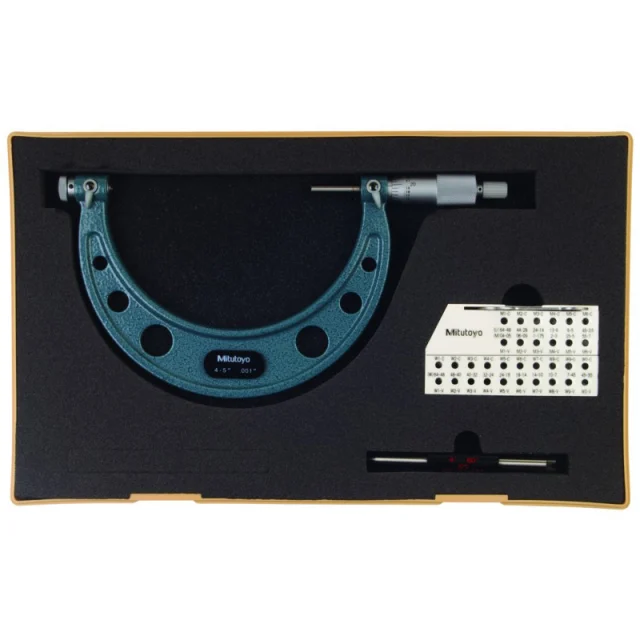

126-141 Includes Only:
- Fitted plastic case
- Gage block (60°)
- Insulation
- Key
Features:
- The ratchet mechanism provides an audible to ensure the measurement is performed at a constant force
- Satin chrome finish on the sleeve and laser-etched measurements on thimble for easier reading
- The frame has a baked enamel finish for durability and a longer lifespan
The Mitutoyo screw thread micrometer uses interchangeable anvils and spindle to perform accurate measurements of different types of screw thread pitch diameters faster and easier. The Mitutoyo screw thread micrometer uses optional V-Anvil and conical spindle inserts interchangeably to precisely measure pitch diameters of metric or unified screw threads. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.
Technical Details
| Range | 4 – 5″ |
| Dimensions |
|
| Spindle feed error | 0.00015″ |
| Measuring force | 5 – 10 N |
| Mass | 530 g |
| Measuring face | Interchangeable anvil/spindle inserts (optional) |
| Measuring spindle | With spindle lock, ø6,35 mm, spindle pitch 0.5 mm |
| Scale | Thimble and sleeve satin chrome finish, ø18 mm |
| Digital/Analog | Analog |
| Graduation | 0.001″ |
| Measuring spindle | With spindle lock, ø6,35 mm, spindle pitch 0.635 mm |
