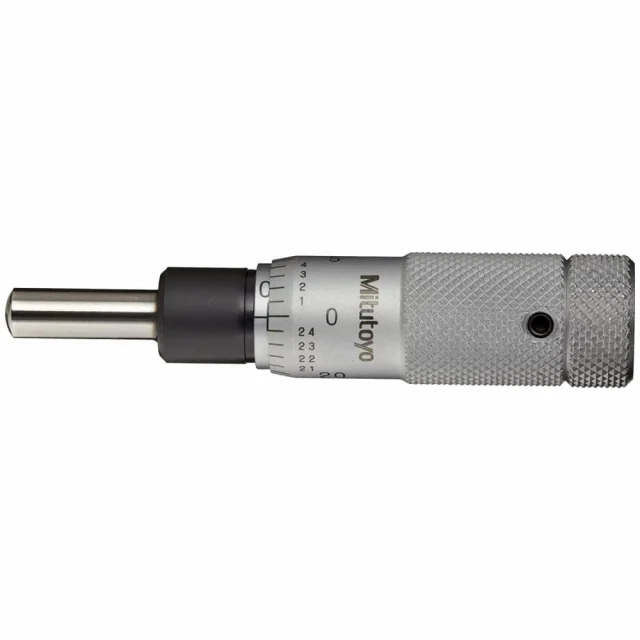

Mitutoyo, 148-853, Series 148 Micrometer Head-Common Type-Small-Zero-Adjust, 0-13mm Range, Plain Stem, Measuring Faces Spherical (SR4)
Features:
- Set screw allows for zero setting at any position
- Smaller size mic head has a 13mm thimble diameter
- Spindle range is 13mm / .5″
- Mounting stem diameter is 9.5mm / .375″
- Spindle diameter is 5mm / .197″
- Mic head total lengths (at stroke end) are 75mm / 2.95″ and 83.6mm / 3.29″
- Reverse reading is on some models
- Spindle faces have lapped surfaces and are constructed of ultra-hard SKS3 steel. Spherical or flat types
- Thimble is hard-chrome plated with laser-etched scales for easy-to-read measurements
The Mitutoyo standard micrometer head can be set to zero at any position by loosening the set screw. The small size of the micrometer head allows it fit in tighter spaces while providing accurate placement and measurements. The spindle is constructed of hardened tool steel, and the measuring face is precision lapped for better accuracy.
Technical Details
| Technology | Mechanical |
| Scale Surface | Hard chrome plating |
| Units | Metric |
| Range | 0-13mm |
| Accuracy | ±2µm |
| Graduation | 0.01mm |
| Measuring Faces | Spherical (SR4) |
| Stem Diameter | 9.5mm |
| Stem | Plain |
| Spindle pitch | 0.5mm |
| Spindle Lock | No |
