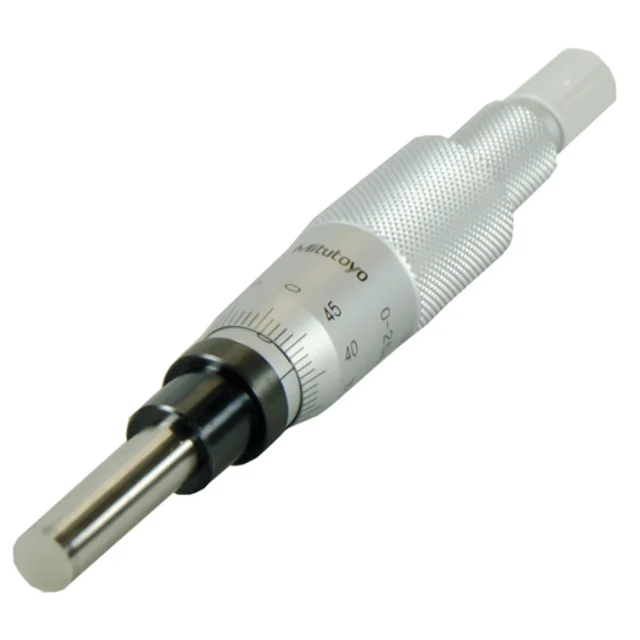

Mitutoyo, 150-218, Series 150 Micrometer Head-Common Type-Middle, 0-1″ Range, w/Clamp Nut Stem, Plain Thimble, Spindle Lock
Features:
- A long spindle type is can be using for a variety of applications
- Mic head has an 18mm thimble diameter
- Mounting stem diameter is 10mm / .375″
- Spindle range is 25mm / 1″
- Spindle diameter is 6.35mm / .25″
- Mic head total lengths (at stroke end) are 134mm / 5.28″ and 145.5mm / 5.73″
- Spindle faces have lapped surfaces and are constructed of carbide. Spherical or flat types
- Thimble is hard-chrome plated with laser-etched scales for easy-to-read measurements
The Mitutoyo small-sized micrometer head delivers precise stage adjustments and measurements up to 25mm / 1″. Its carbide-tipped spindle is exceptionally flat, accurate and durable. The ratchet thimble mechanism provides an even, constant force.
Technical Details
| Technology | Mechanical |
| Scale Surface | Hard chrome plating |
| Units | Inch |
| Range | 0-1″ |
| Accuracy | ±0.0001″ |
| Graduation | 0.001″ |
| Ratchet/Thimble | Plain Thimble |
| Measuring Faces | Carbide tipped |
| Stem Diameter | 0.375″ |
| Stem | w/Clamp nut |
| Spindle pitch | 0.025″ |
| Spindle Lock | Yes |
