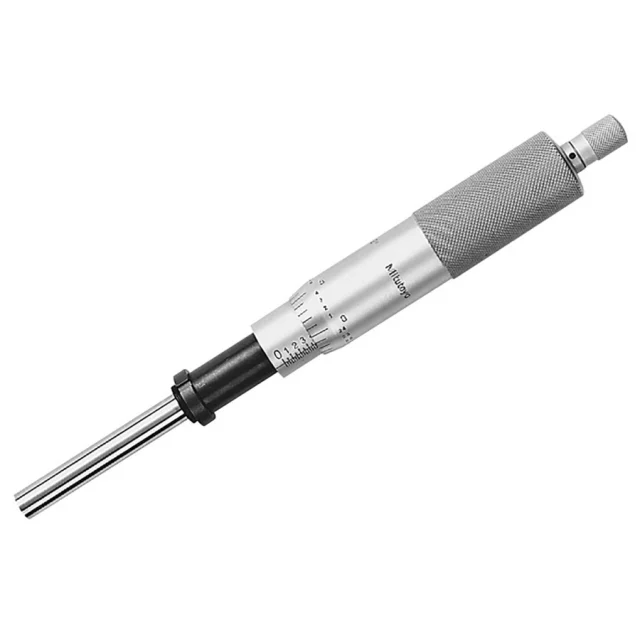

Mitutoyo, 151-272, Series 151 Micrometer Head-Common Type-Middle 8mm Diameter, 0-2″ Range, Plain Stem
Features:
- A long spindle type is can be using for a variety of applications
- Spindle ranges are: is 25mm / 1″ and 50mm / 2″
- Mic head has a 21mm thimble diameter
- Spindle diameter is 8mm / .314″
- Mic head total length (at stroke end) is 5mm / 5.69″
- Mounting stem diameter is 12mm / .5″
- Spindle faces have lapped surfaces and are constructed of carbide. Spherical or flat types
- Thimble is hard-chrome plated with laser-etched scales for easy-to-read measurements
The Mitutoyo heavier duty micrometer head has a large spindle diameter of 8mm constructed of hardened steel for precision adjustments and measurements with heavy-duty use. Its carbide-tipped spindle is exceptionally flat, accurate and durable.
Technical Details
| Technology | Mechanical |
| Scale Surface | Hard chrome plating |
| Units | Inch |
| Range | 0-2″ |
| Accuracy | ±0.0002″ |
| Graduation | 0.001″ |
| Ratchet/Thimble | Ratchet Stop |
| Measuring Faces | Flat (carbide tip) |
| Stem Diameter | 0.5″ |
| Stem | Plain |
| Spindle pitch | 0.025″ |
| Spindle Lock | No |
