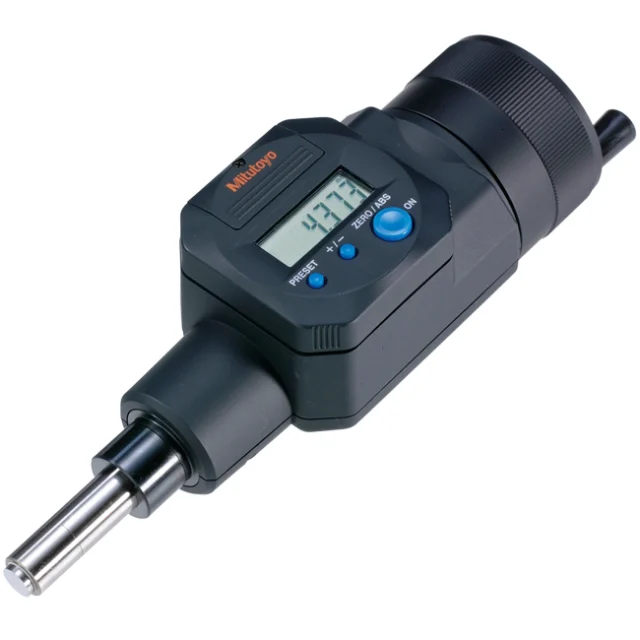

Mitutoyo, 164-163, Series 164 Digimatic Micrometer Head-Rotating Display, 0-50mm Range
Features:
- Spindle diameter is 11mm
- Mic head total length (at stroke end) is 181.5mm
- Measurement results are displayed with an LCD readout that rotates 330 degrees
- Ratchet mechanism provides an audible sound to ensure measurement is being performed at a constant pre-set force
- Functions include Zero Setting, Data Hold, Data Output, Preset, and inch/mm conversion (on inch/metric models only)
- Alarm: Low Voltage, Counting Value Composition Error
- Twice as long battery life than previous models improves throughput and efficiency
- Auto power ON/OFF function saves battery life and allows easier use
- Supplied in a plastic, fitted case
The Mitutoyo Digimatic digital micrometer head rotates up to 330 degrees for reading in any position, making this micrometer head ideal for small microscope and precision tool set ups. The non-rotating spindle eliminates radial torsion on a workpiece surface and the spindle, providing accurate results that are easier to achieve. The ratchet thimble provides a constant measuring force on the spindle to ensure accurate, repeatable measurements.
Technical Details
| Technology | Digimatic |
| SPC Output | Yes |
| Spindle Type | Non-rotating |
| Mass | 490g |
| Display | LCD |
| Battery | SR44 (2 pcs.) 938882 |
| Battery Life | Approx. 1.8 years under normal use |
| Units | Metric |
| Range | 0-50mm |
| Resolution | 0.001mm |
| Graduation | 0.01mm |
| Accuracy | ±3µm |
| Stem diameter | 18mm |
