201-160 Includes Only:
- Handguard
- Adjustable workpiece stop
- A fitted plastic case
Features:
- Anvil retracting stroke: 2 mm/.078″
- Anvil position range: 25 mm/1″
- Anvil surfaces are made of carbide for better durability
- Both front edges of the anvil are chamfered for easy insertion
- Frame is powder-coated

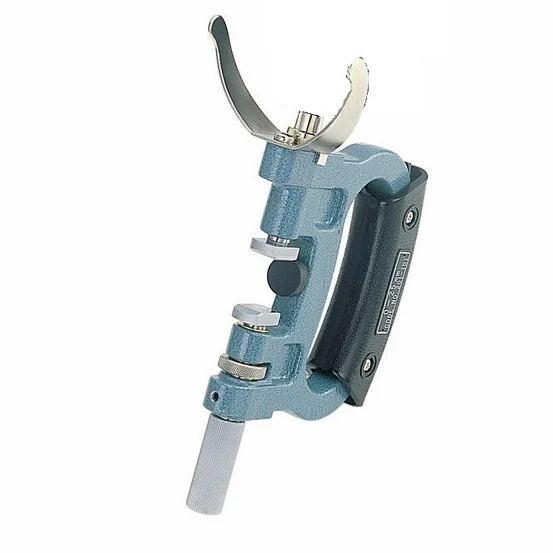

The Mitutoyo dial snap gage performs quick Go/No-Go judgments of cylinder and shaft diameters during the machining process. The Mitutoyo dial snap gage is designed to provide quick and easy Go/No-Go diameter judgments for cylinders and shafts. The gage’s frame and the spindle are constructed of hardened steel that resists flexing and temperature fluctuations for more accurate, repeatable results. The hand grip allows for solid, secure handling of the gage while in use.
Technical Details
| Range | 9 – 10″ |
| Dimensions |
|
| Anvil retracting stroke | 0.078″ |
| Stem Diameter | 3/8″ |
| Parallelism | 0.00025″ or less |
| Mass | 1540 g |
| Anvil positioning range | 1″ |
| Anvil flatness | 0.00004″ |
| Inch-Metric | Inch |
