Features:
- The indicator should be used in conjunction with a setting ring or micrometer
- White dial face for easier, precise measurement readings
- Crystal is glare-free with a scratch-resistant coating
- IP65 Rating resists dust and liquid penetration up to the force of a low-pressure water jet
- Supplied in a fitted plastic case

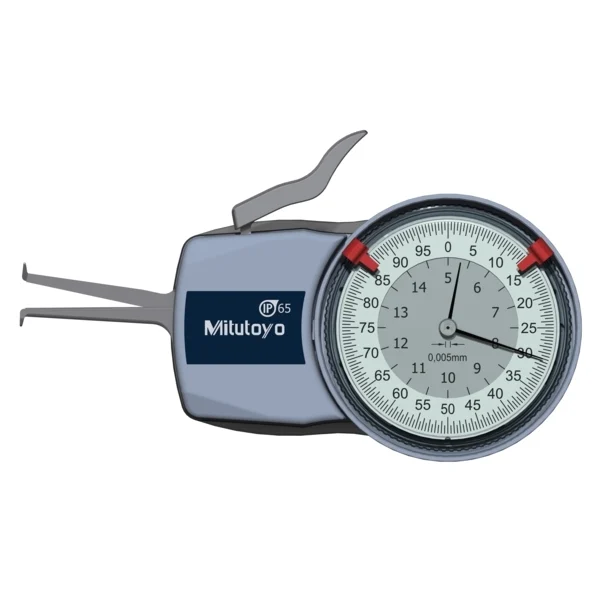

The Mitutoyo internal dial indicators utilize spring-loaded jaws to make constant point contact pressure to take highly accurate comparison measurements of hole diameters and groove and tube thicknesses. The dial display provides precise, readable measurements in metric or inches.
Dimensions:
Technical Details
| Inch-Metric | Metric |
| Range | 5 – 15 |
| Dimensions | |
|
|
| Graduation | 0.005 mm |
| Graduation | 0.005 |
| Accuracy | 0,015 mm |
| Measuring Force | 0,8-1,2 N |
| Mass | 160 g |
| Type | Fig. 4 |
