Features:
- Indicator should be used in conjunction with a setting ring or micrometer
- White dial face for easier, precise measurement readings
- Crystal is glare-free with a scratch-resistant coating
- IP65 Rating resists dusts and liquid penetration up to the force of a low-pressure water jet
- Supplied in a fitted plastic case

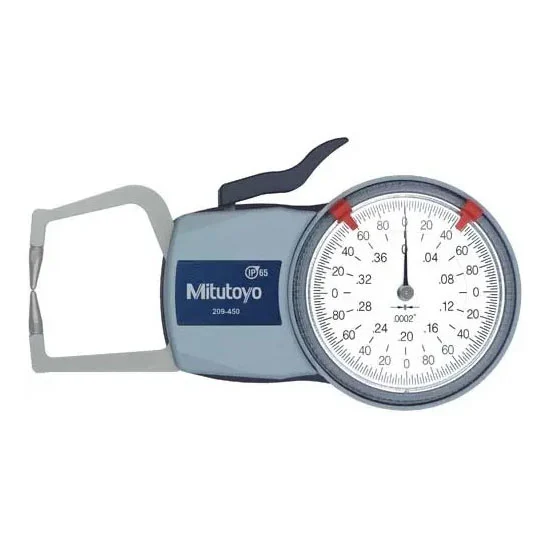

The Mitutoyo external dial caliper gage utilizes spring-loaded jaws to provide constant point contact pressure to take highly accurate comparison measurements of hole diameters and groove and tube thicknesses. The dial display provides precise, readable measurements in metric or inches.
Technical Details
| Units | Inch |
| Min Range | 0mm |
| Max Range | 40″ |
| Graduation | .0002″ |
| Accuracy | +/-.0008″ |
| Max measuring depth | 1.37″ |
| Upper meas cont lgth | .75″ |
| Lower meas cont lgth | .75″ |
| Upper meas cont type | Ball |
| Lower meas cont type | Ball |
| Upper measuring diameter | 1.5mm |
| Lower measuring diameter | 1.5mm |
| Mass | 170g |
| Technology | Mechanical |
| IP Rating | IP65 |
