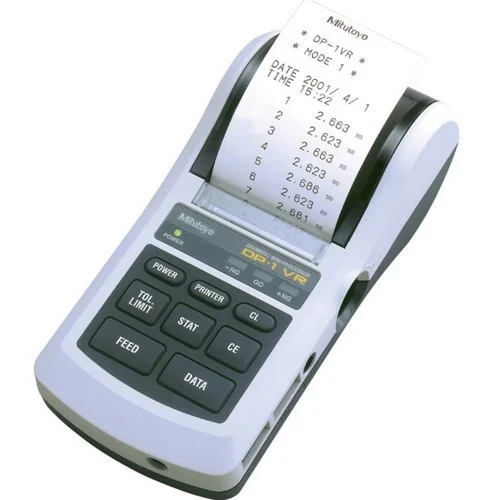

The Mitutoyo 264-505A SPC Mini Processor, DP-1VR can print out measurement data from digimatic gages and perform statistical analysis. The unit also has RS-232C output and GO/NG judgement output.
Using real-time measurement data directly from a Digimatic-output measuring tool, the high performance DP-1VA LOGGER performs complex statistical calculations such as those needed for Xbar-R control charts, histograms and D-charts. The data logger function also allows storage of up to 1,000 pieces of data in memory, and batch transfer of stored data to an Excel-format inspection certificate, etc., by connecting to a PC with a USB cable. The DP-1VA LOGGER is the result of the pursuit of excellent portability and flexibility in the 2-way power supply system, and provides significant potential for efficiency improvements in the quality control function.
Technical Details
| Printing method | Thermal line printer |
| Character specification | Total number of dots: 384 dots/line Dot size: 8 dots/mm |
| Printing speed | 0.8s per line (6.5mm/s) |
| Power supply |
|
| Data processing capacity |
|
| Tolerance judgment | Five sets can be set. |
| Measurement data logging (storage) | Up to 1,000 pieces |
| Input timer | 0.25s, 1s, 5s, 30s, 1 min, 30min, 60min |
| Output |
|
| Clock accuracy | Maximum time difference per month: ±2 minutes |
| Operating temperature |
|
| Storage temperature | -10 to 50ºC |
| Mass | 390g (main unit) |
| External dimensions | 94 (W) x 201 (D) x 75.2 (H) mm |
