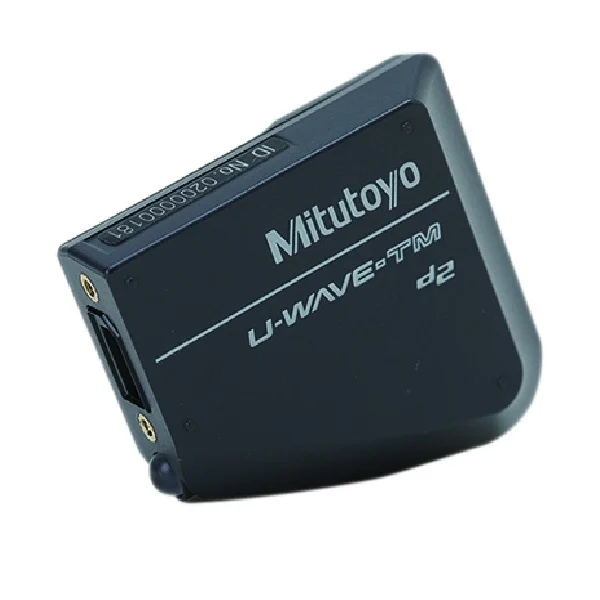

Mitutoyo, 264-622, U-Wave Wireless IP67 Type Transmitter for Micrometer
Features:
- User-friendly interface allows data to be loaded into any software product that accepts keyboard input, such as Microsoft Excel™ or Notepad
The U-WAVE transmitter installs onto any Mitutoyo digital measuring tool and uses the Mitutoyo Digimatic protocol to easily transfer data measurements wirelessly to a PC. The use of U-WAVE eliminates the need for long, cumbersome data cables for much better measurement efficiency.
Technical Details
| Wireless Communication Protocol | Proprietary (2,4 GHz by original specification based on IEEE 802.15.4) |
| Modulation Method | DS-SS (Direct Sequence Spread Spectrum) |
| Measuring Instruments | 100, 150, 200, 300 mm caliper |
| Remarks | IP67 |
| Data Reception Indication | LED (green, red, orange) |
| Communication Distance | Approx. 20 m (within visible range) |
| Communication Speed Kbps | 250 |
| Power Supply | Battery CR2032 x 1 pcs. |
| Communication with Measuring Tool | Digimatic (6 digits), Digimatic 2 (8 digits) automatic identification |
| Communication Frequency | 2,4 GHz band (2,405-2,475 GHz, 15 channels, 5 MHz interval) |
| Transmission Output | 2,5 mW (4 dBm) or below |
| OS Compatibility | Windows® 2000 Professional (≥SP4), Windows® XP Professional (≥SP2), Windows® XP Home Edition (≥SP2), Windows Vista®, Windows® 7 (32bit, 64bit), Windows® 8, 8. 1, 10 (32bit, 64bit), 11 |
| Battery Life | Approx. 400000 transmissions |
