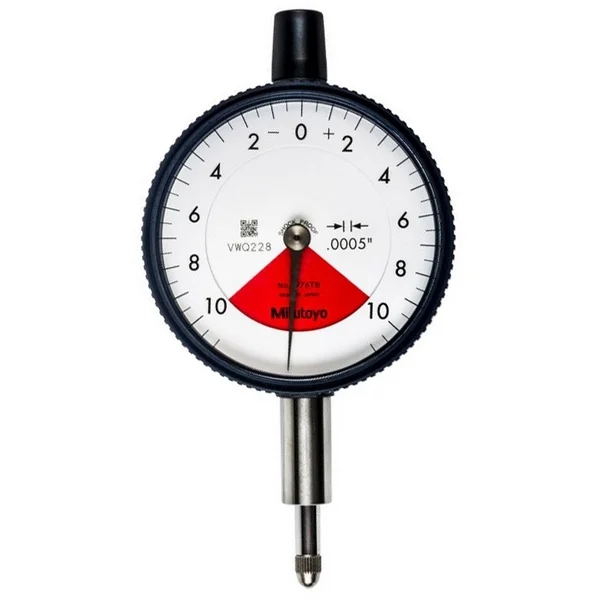

Mitutoyo, 2976TB, AGD/ANSI Type 0.02″ Range Dial Indicator with Flat Back
Features:
- Lightweight type / standard type
- Limiting pointer rotation to one revolution eliminates the reading errors that can occur with dial indicators featuring more than one revolution of the pointer for a full stroke.
One Revolution Type for Error-free Reading.
Technical Details
| Digital/Analog | Analog |
| Inch-Metric | Inch |
| Dimensions | |
|
|
| Functions | ANSI/AGD type |
| Range | 0,02″ (plunger stroke: 0,14″) |
| Range Per Revision | 0.02″ |
| Graduation | 0,0005″ |
| Accuracy | ±0,0005″ |
| Error of Indication One Revolution | ±0,0005″ |
| Type | ANSI/AGD Standard |
| Mass | 75 g |
| Stem | 9.52 mm / 0.375″ |
| Contact Point | Carbide tipped, thread: 4-48UNF |
