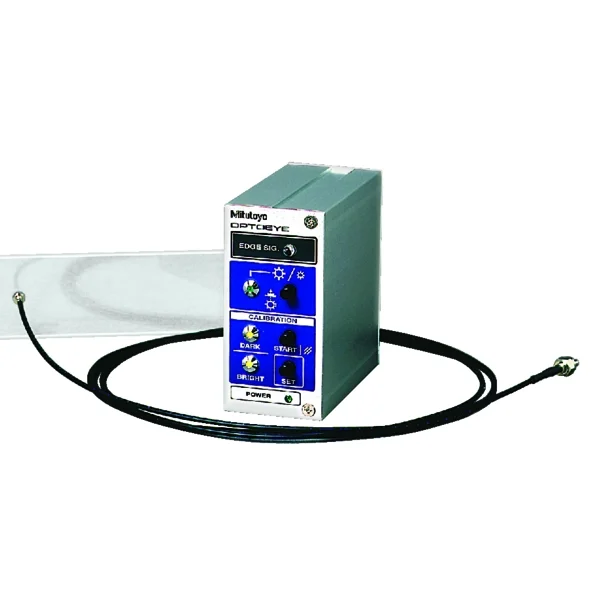

Mitutoyo 332-151 Series 340 Sensor Optoeye 200 Edge Detection Sensor

This edge sensor allows you to make accurate measurements independant of your skill level byautomatically detecting edges used in measurements.The Optoeye 200 offers you the following benefits:

• OPTOEYE 200 reduces the effect of operator skill level on accuracy by automatically detecting edges used in measurements.
• PJ-H30: You can use the OPTOEYE edge detector on models PJ-H30A (requires adapter plate 12AAG983). The PJ-H30D models have a built-in edge detector.
• PV-5110, PJ-3515F and PJ-A14: You can use the OPTOEYE edge detector in combination with the QM-Data 200.
• PJ-PLUS: You can use the OPTOEYE edge detector on models 302-801-10/302-802-10 in combination with the QM-Data 200.
• When you are using the OPTOEYE all projector scales must be connected to QM-Data 200 directly and built-in counters can no longer be used (except PJ-H30D type).
